K Series Bevel Geared Motor Harmonic Gearbox
Cast Iron Helical Conical Gearbox Motor Electric Reducer
Cast Iron Helical Conical Gearbox Motor Electric Reducer for industrial reducer gearbox applications. Built for reliable power transmission, project configuration, and XinChi OEM reducer support.
Specifications
- Place of Origin
- ZheJiang, China
- Brand
- XinChi
- Shipping Port
- Any port in China
- Free Maintenance
- One Year
- Lead Time
- About 3 Weeks
Get a Quote for Cast Iron Helical Conical Gearbox Motor Electric Reducer
Tell us more about your reducer gearbox requirement. XinChi Precision Machinery Co., Ltd. provides industrial gearbox production, reducer selection support, and fast service for custom projects. Any questions, call +86-17357726208.
Company Overview
XinChi Precision Machinery Co., Ltd. integrates research and development, production, and manufacturing for reducer products. We provide mature gearbox solutions and support customers with project-ready gearbox configuration.
Product Parameters
Product Name | K Series Rigid Tooth helical bevel reducer |
|---|---|
Gear Material | 20CrMnTi |
Case Material | HT250 |
Shaft Material | 20CrMnTi |
Gear Processing | Grinding finish by HOFLER Grinding Machines |
Color | Customized |
Noise Test | 65~70dB |
Efficiency | 94%~98% (depends on the transmission stage) |
Heat treatment | tempering, cementiting, quenching,etc. |
Temp. rise (MAX) | 40 ° |
Temp. rise (Oil)(MAX) | 50 ° |
Vibration | ≤20µm |

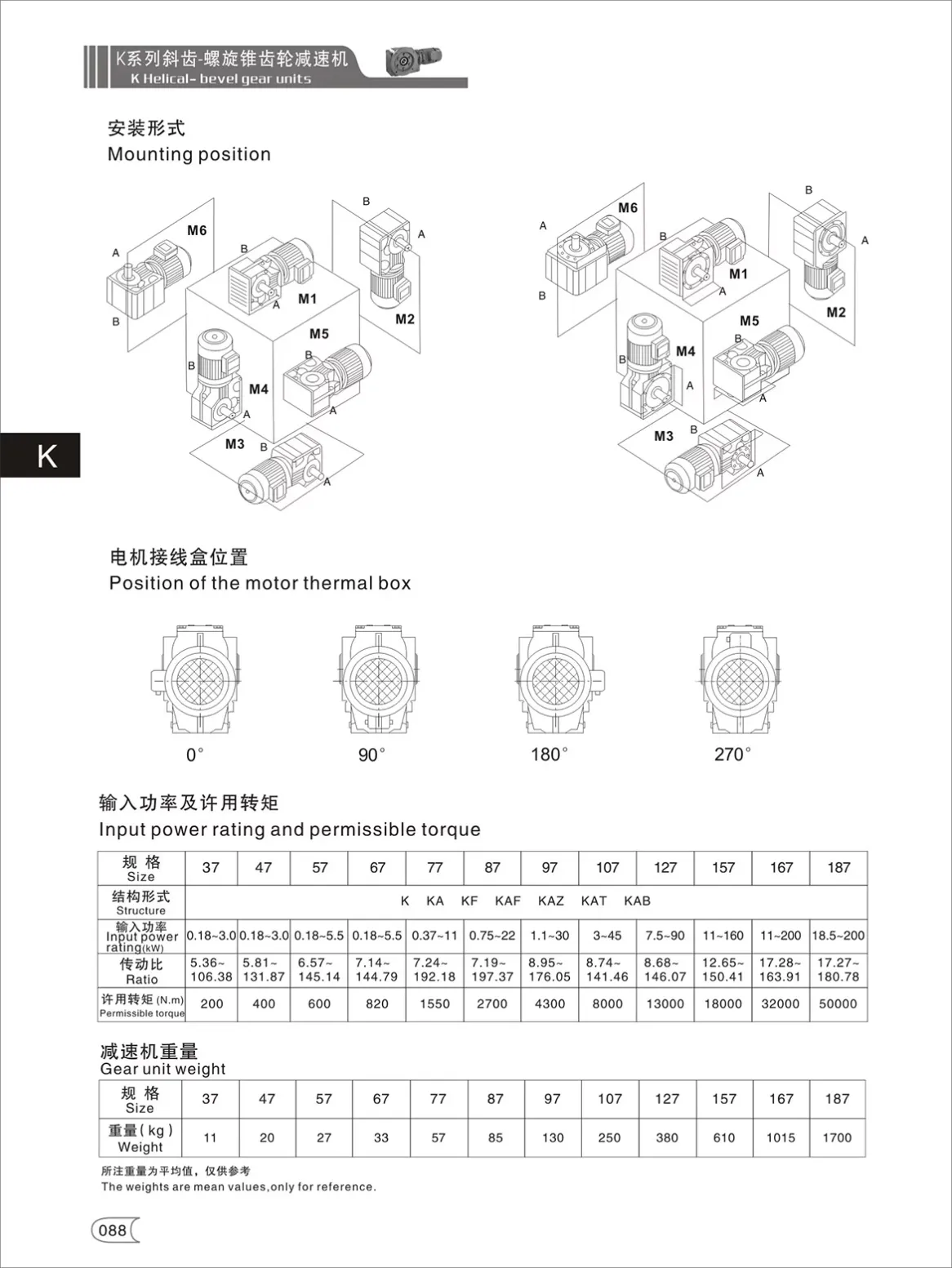

Key Attributes
Cast Iron Helical Conical Gearbox Motor Electric Reducer key attributes 06
Cast Iron Helical Conical Gearbox Motor Electric Reducer key attributes 07

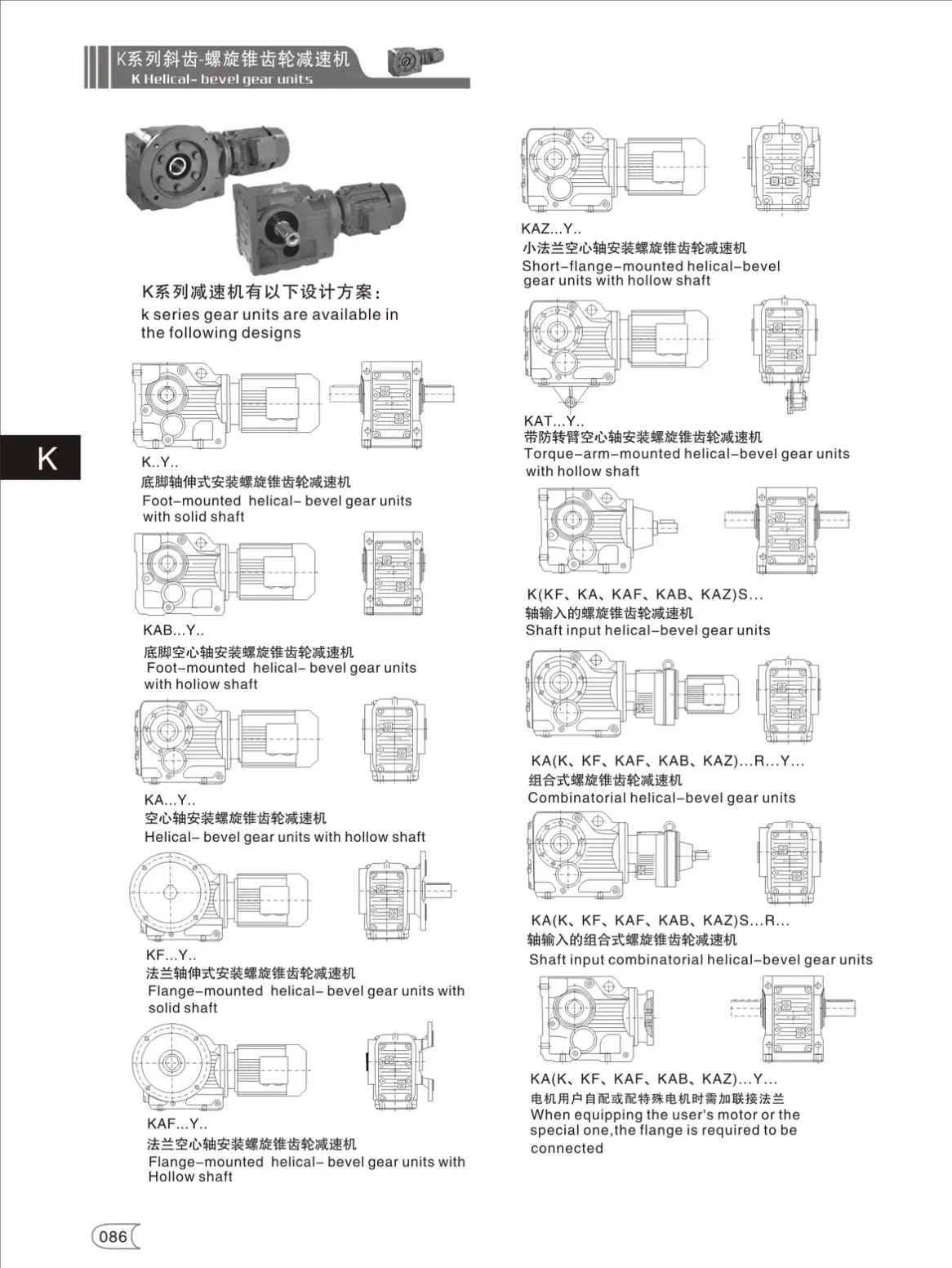

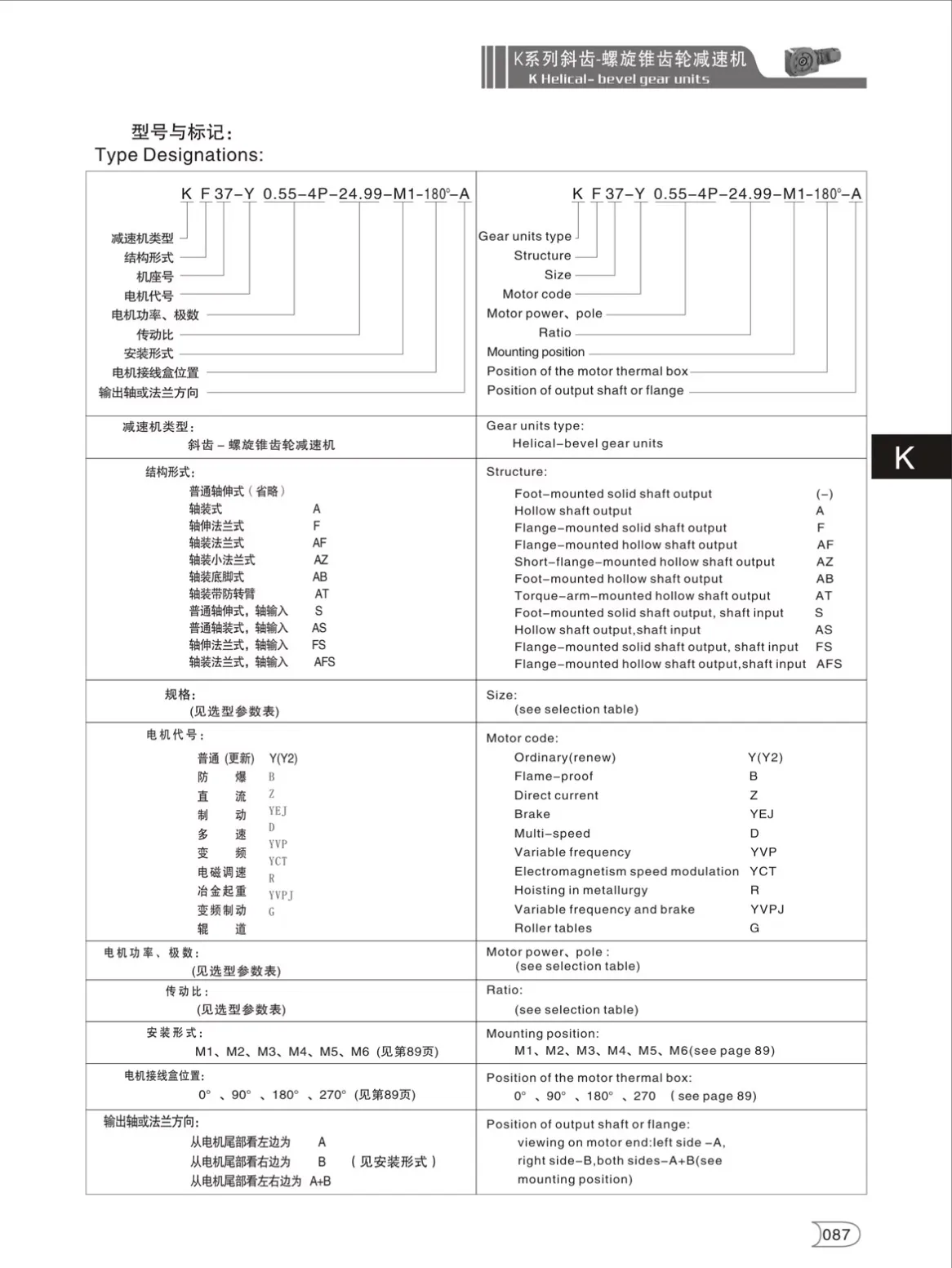

Type Designations
Cast Iron Helical Conical Gearbox Motor Electric Reducer type designations 08
Cast Iron Helical Conical Gearbox Motor Electric Reducer type designations 09
Cast Iron Helical Conical Gearbox Motor Electric Reducer type designations 10
Our Advantage
Cast Iron Helical Conical Gearbox Motor Electric Reducer our advantage 11
Fast Quotation
For a fast quotation, send application details, drawings, reduction ratio, torque, mounting requirements, quantity, and destination port.
