K Series Bevel Geared Motor Harmonic Gearbox

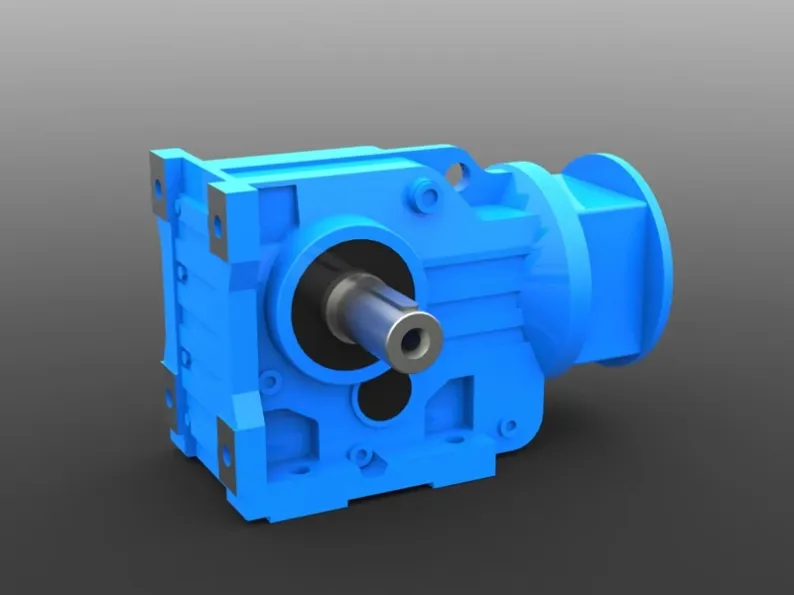

90-Degree Output High Precision Helical-Bevel Gearbox
90-Degree Output High Precision Helical-Bevel Gearbox for industrial reducer gearbox applications. Built for reliable power transmission, project configuration, and XinChi OEM reducer support.
Specifications
- Place of Origin
- ZheJiang, China
- Brand
- XinChi
- Shipping Port
- Any port in China
- Free Maintenance
- One Year
- Lead Time
- About 3 Weeks
Get a Quote for 90-Degree Output High Precision Helical-Bevel Gearbox
Tell us more about your reducer gearbox requirement. XinChi Precision Machinery Co., Ltd. provides industrial gearbox production, reducer selection support, and fast service for custom projects. Any questions, call +86-17357726208.
Company Overview
XinChi Precision Machinery Co., Ltd. integrates research and development, production, and manufacturing for reducer products. We provide mature gearbox solutions and support customers with project-ready gearbox configuration.

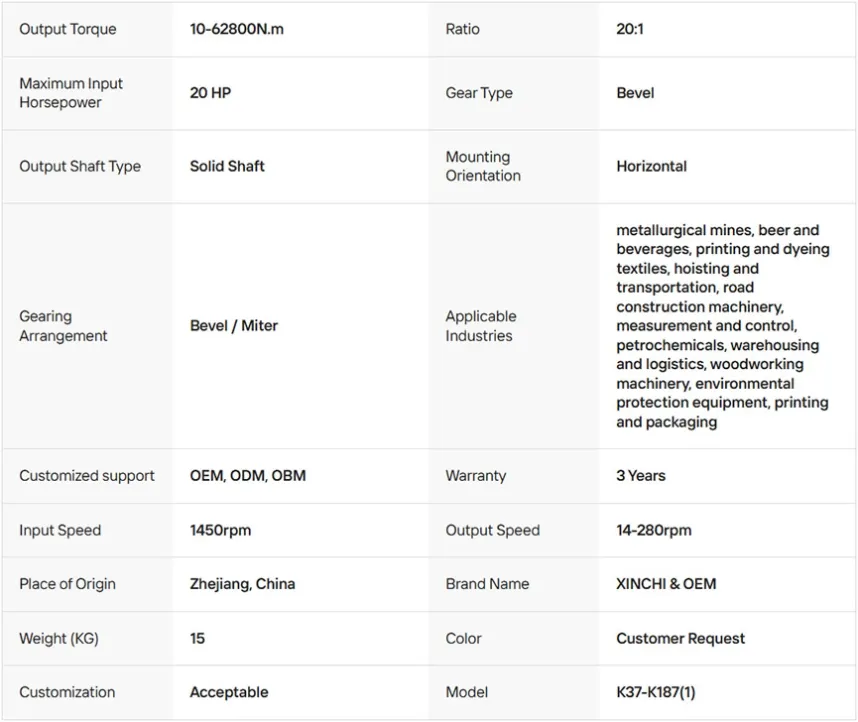

Product Parameters
Product Name | K Series Rigid Tooth helical bevel reducer |
|---|---|
Gear Material | 20CrMnTi |
Case Material | HT250 |
Shaft Material | 20CrMnTi |
Gear Processing | Grinding finish by HOFLER Grinding Machines |
Color | Customized |
Noise Test | 65~70dB |
Efficiency | 94%~98% (depends on the transmission stage) |
Heat treatment | tempering, cementiting, quenching,etc. |
Temp. rise (MAX) | 40 ° |
Temp. rise (Oil)(MAX) | 50 ° |
Vibration | ≤20µm |
Product Details
90-Degree Output High Precision Helical-Bevel Gearbox product details 06
Key Attributes
90-Degree Output High Precision Helical-Bevel Gearbox key attributes 07
90-Degree Output High Precision Helical-Bevel Gearbox key attributes 08
Type Designations
90-Degree Output High Precision Helical-Bevel Gearbox type designations 09
90-Degree Output High Precision Helical-Bevel Gearbox type designations 10
90-Degree Output High Precision Helical-Bevel Gearbox type designations 11
Our Advantage
90-Degree Output High Precision Helical-Bevel Gearbox our advantage 12
Fast Quotation
For a fast quotation, send application details, drawings, reduction ratio, torque, mounting requirements, quantity, and destination port.
