SMR Shaft Mounted Speed Reducer

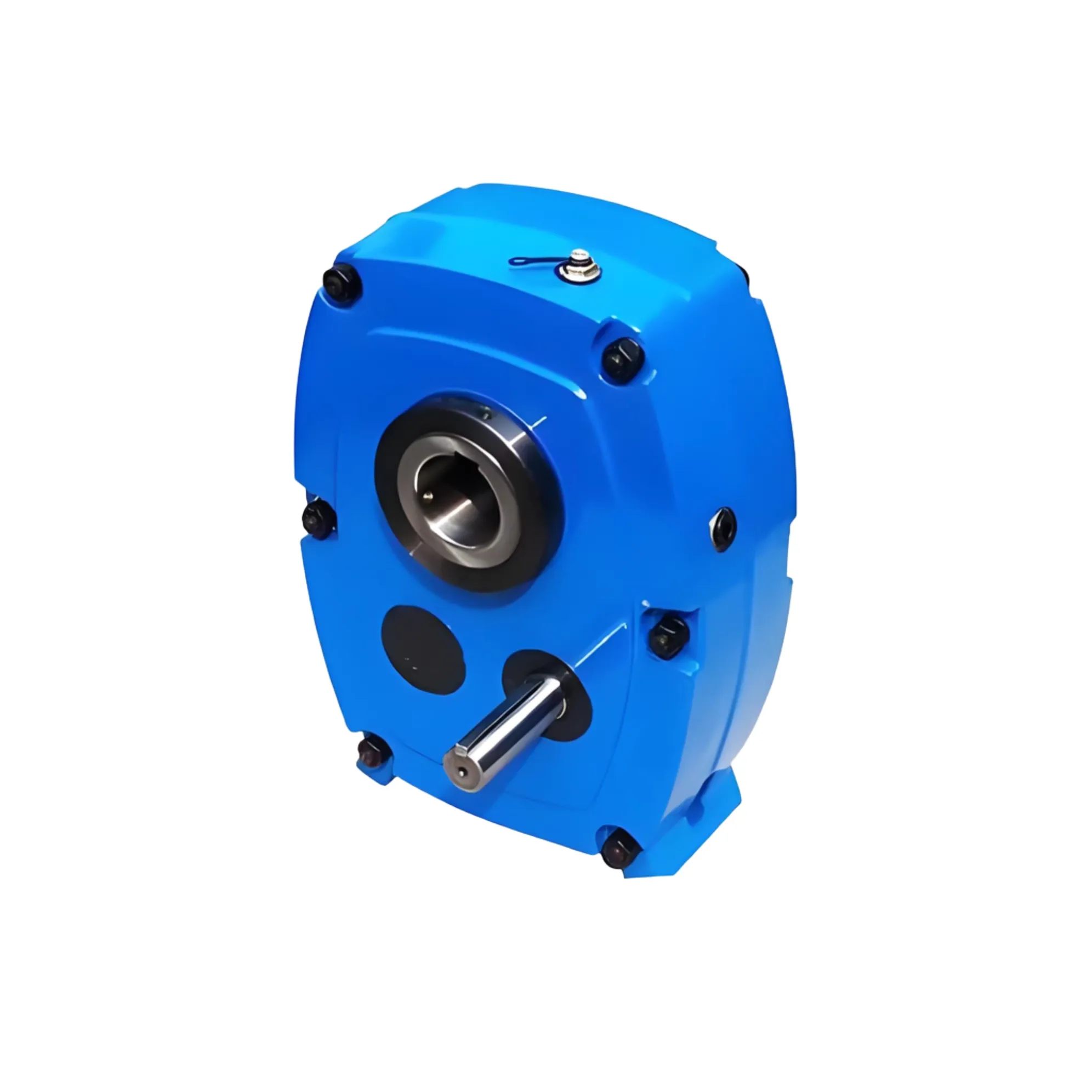

SMR Shaft Mounted Gearbox Speed Reducer
Custom High Quality SMR Shaft Mounted Speed Reducer Shaft Mounted Gearbox for Bucket Elevator
Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations:
Keyed Solid Shaft Input
5. Output Configurations:
Keyed Hollow Shaft Output
6. Oil Seal: Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop

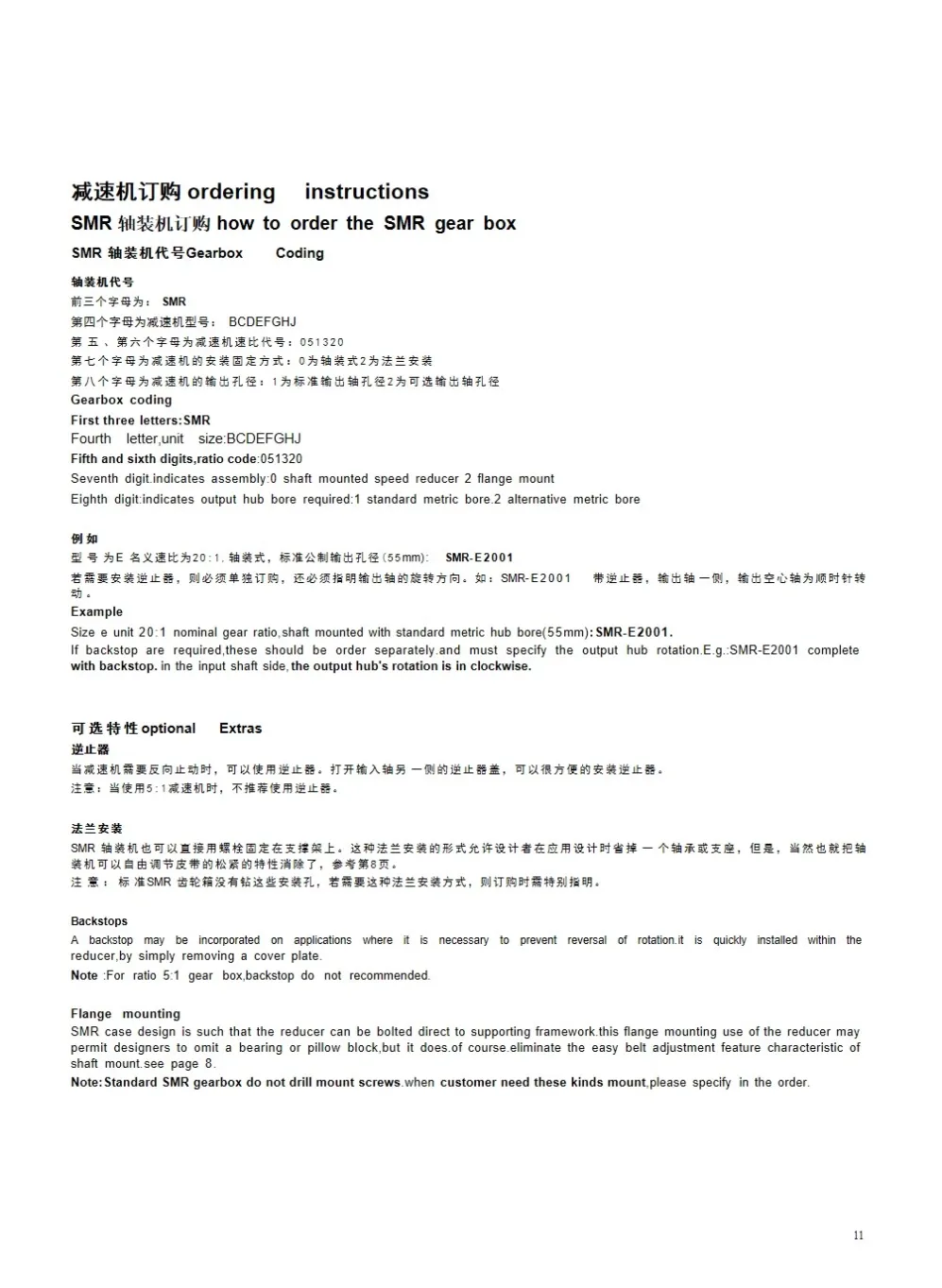

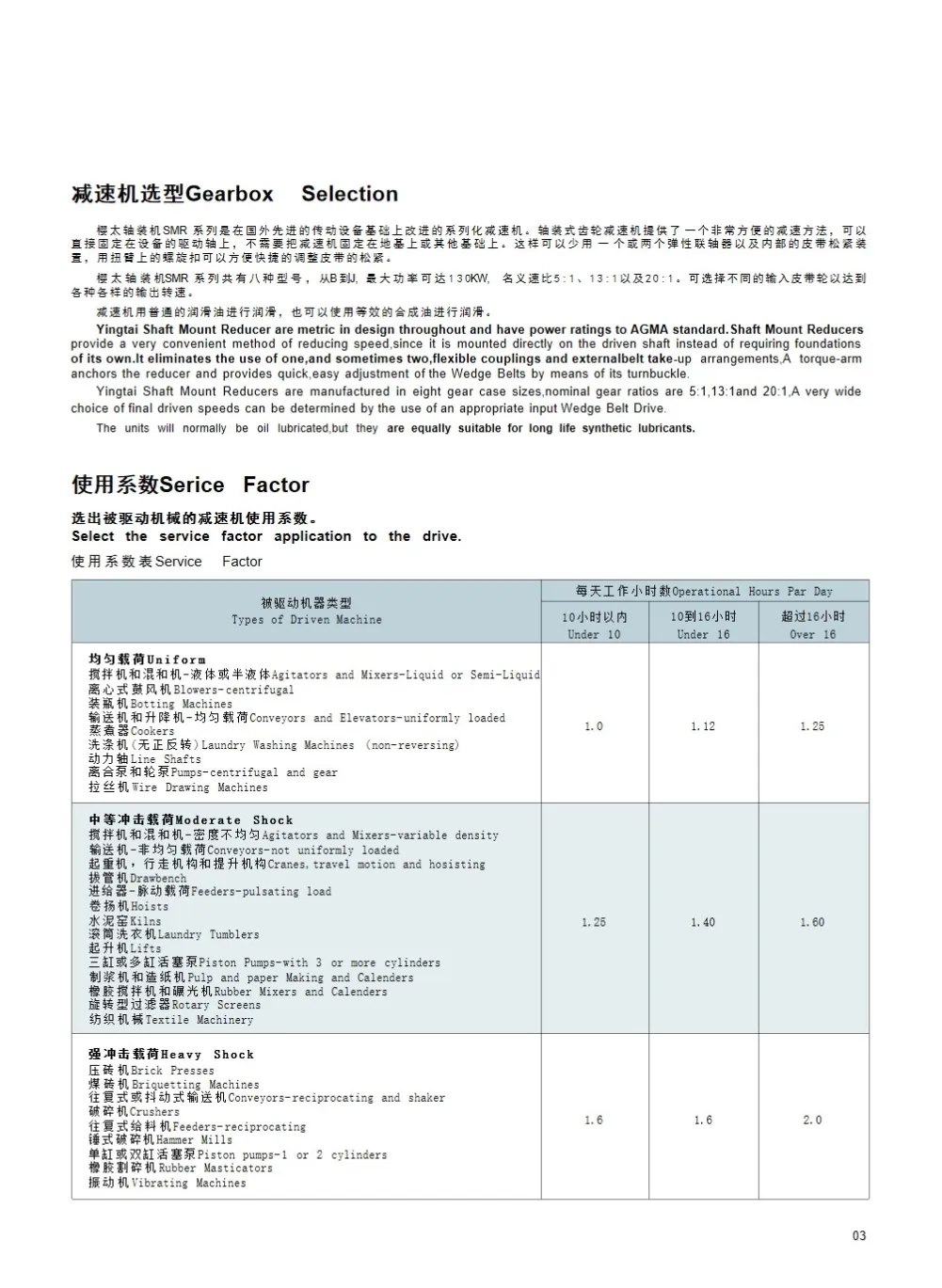

Models:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof

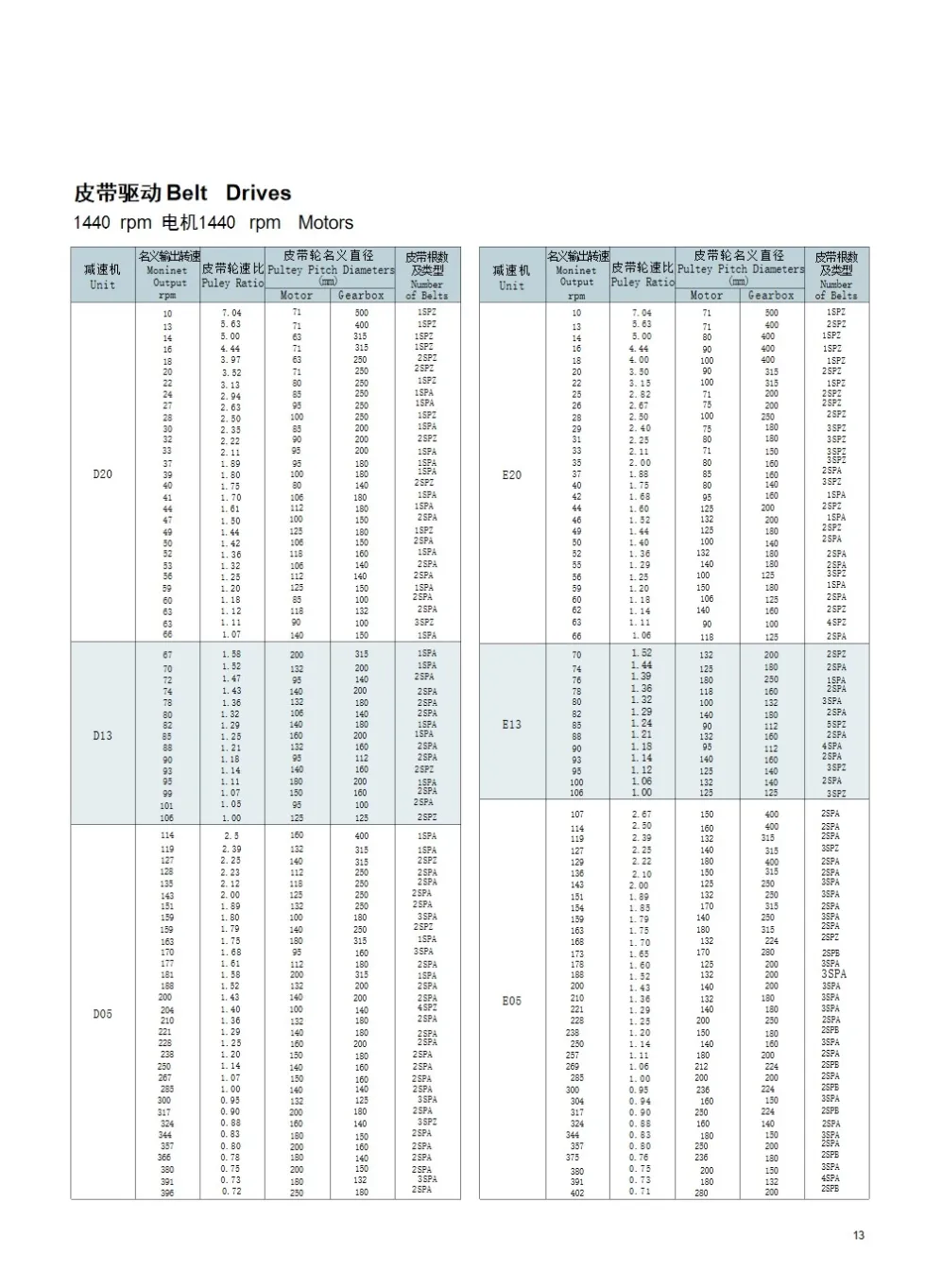

5. Widely used in belt conveyor and pulley drive system

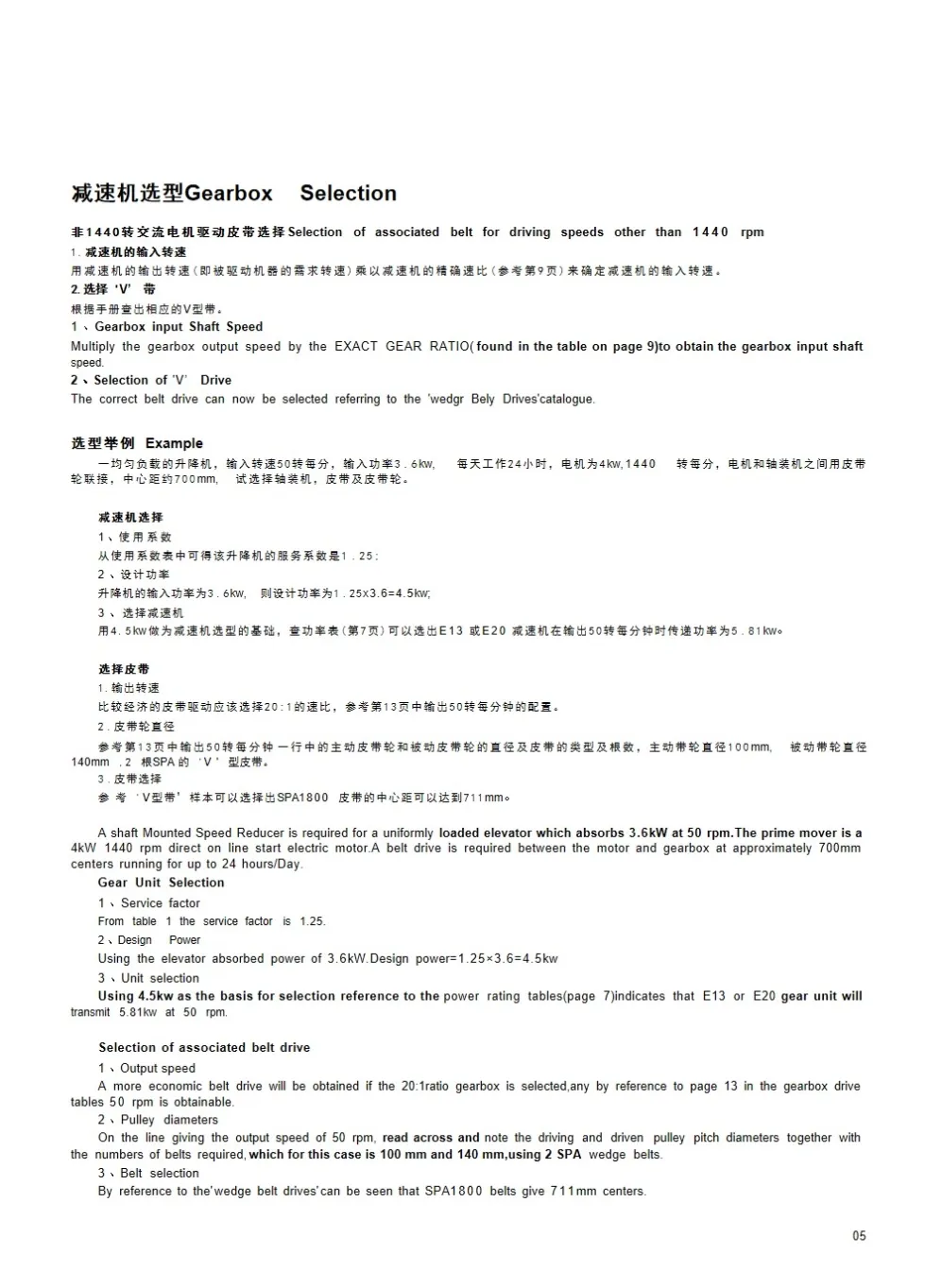

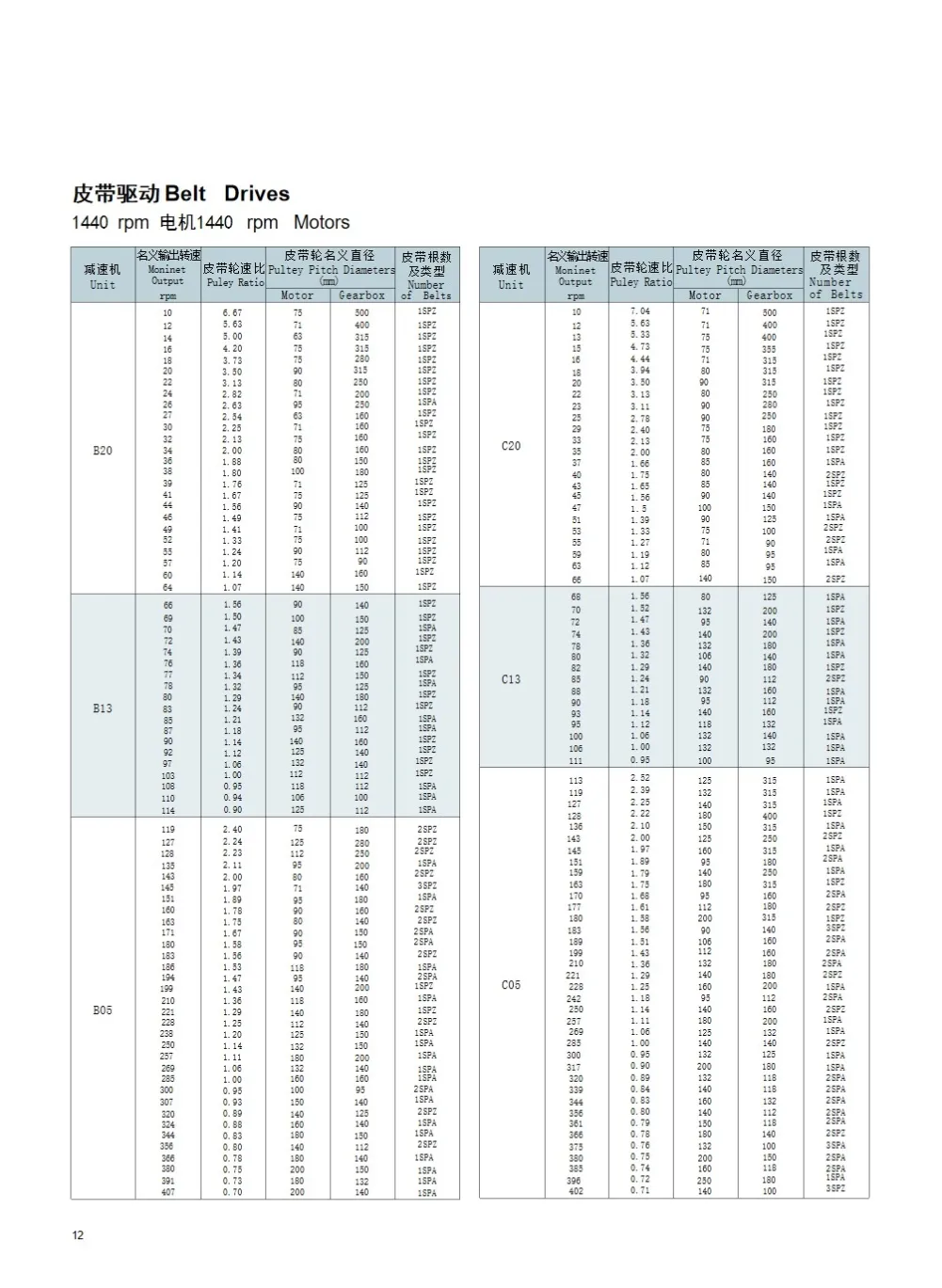

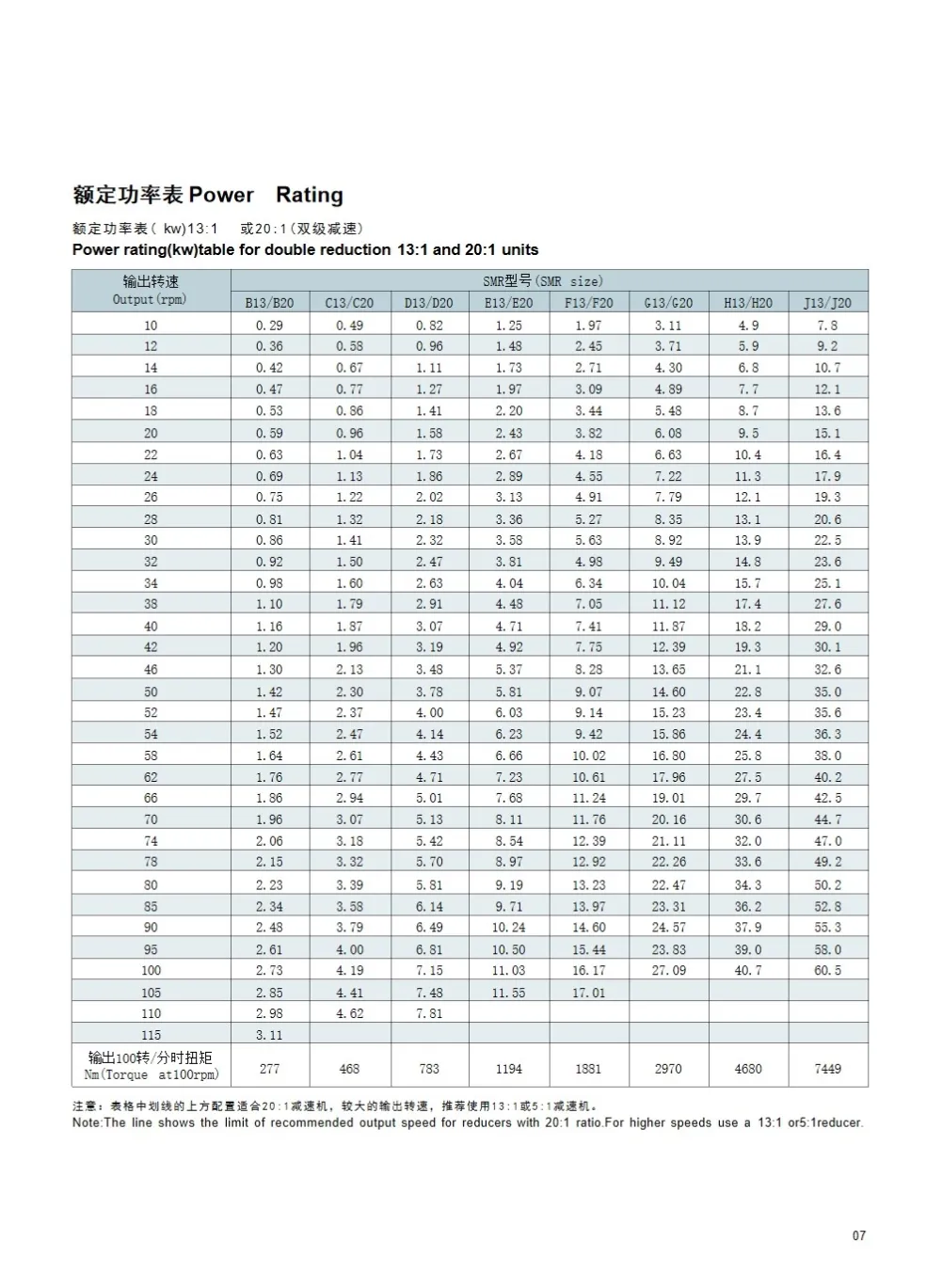

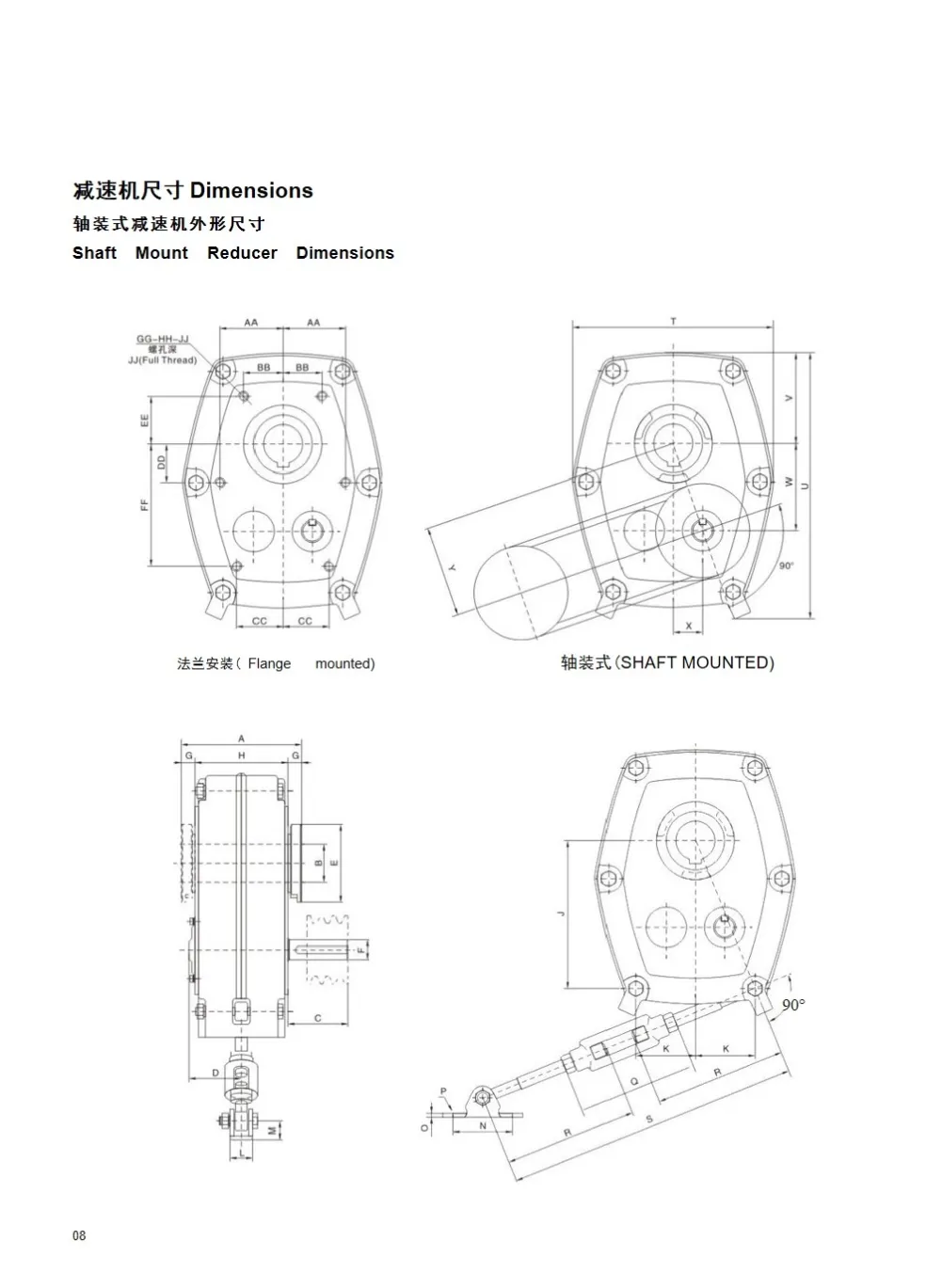

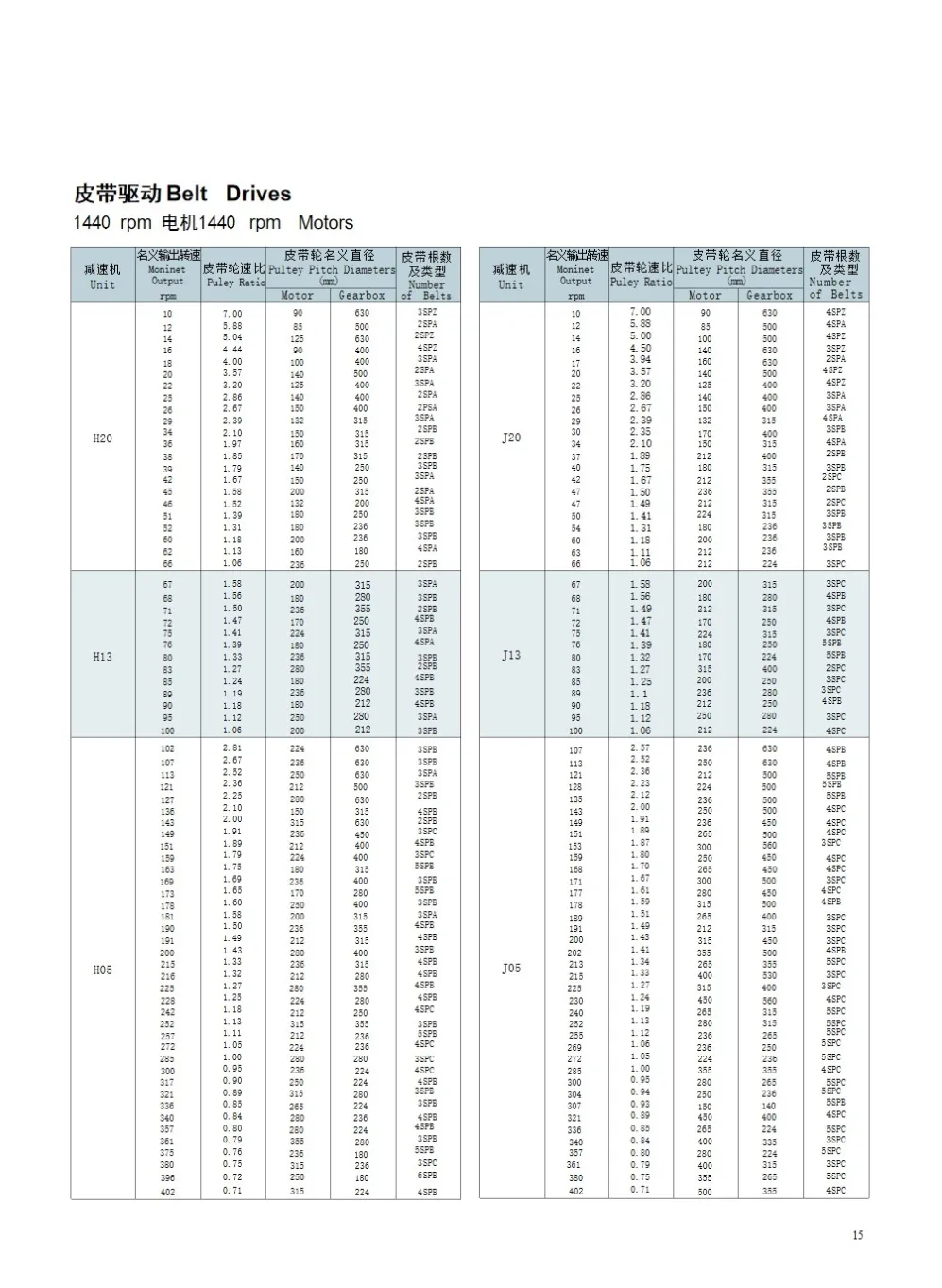

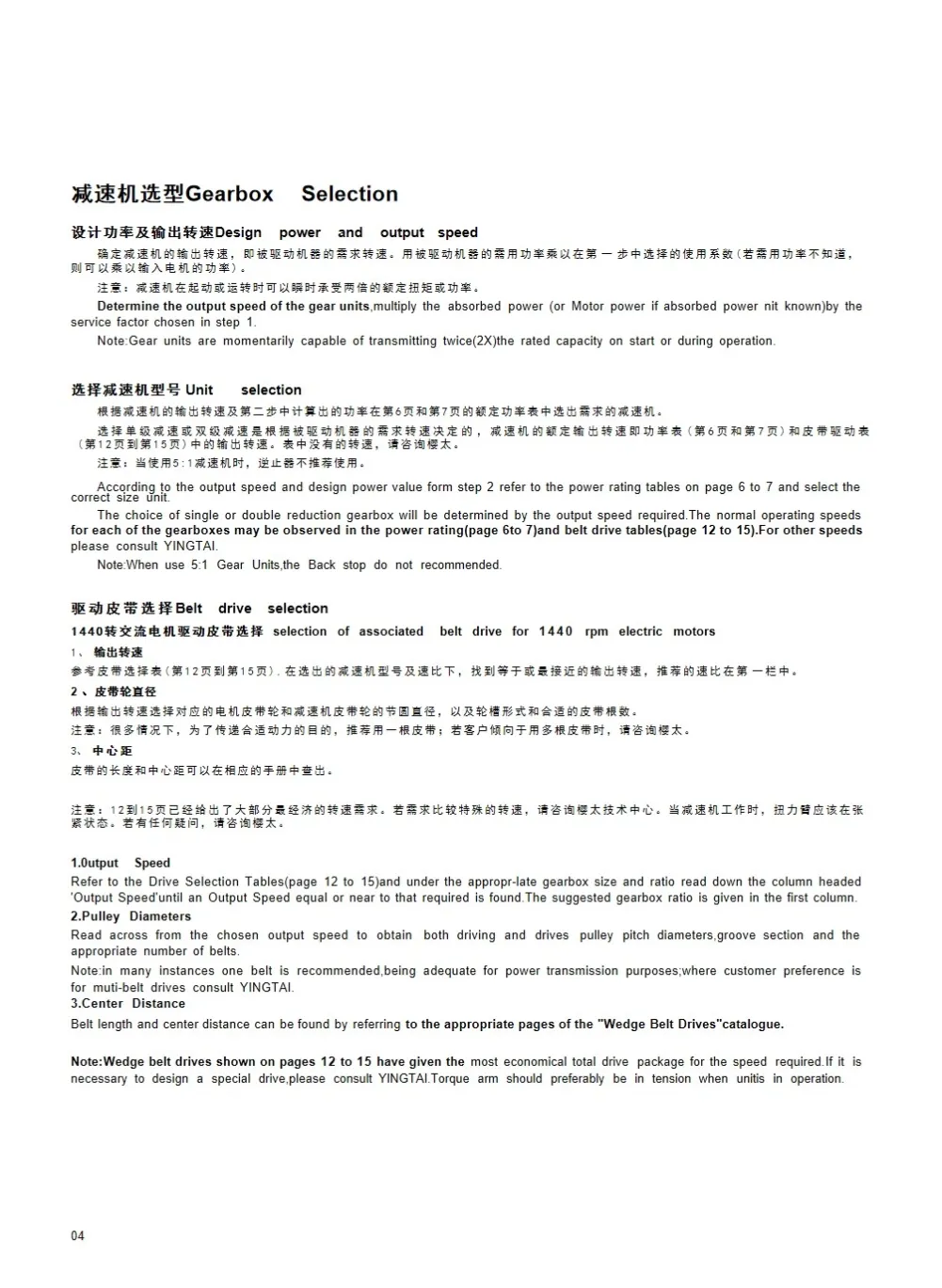

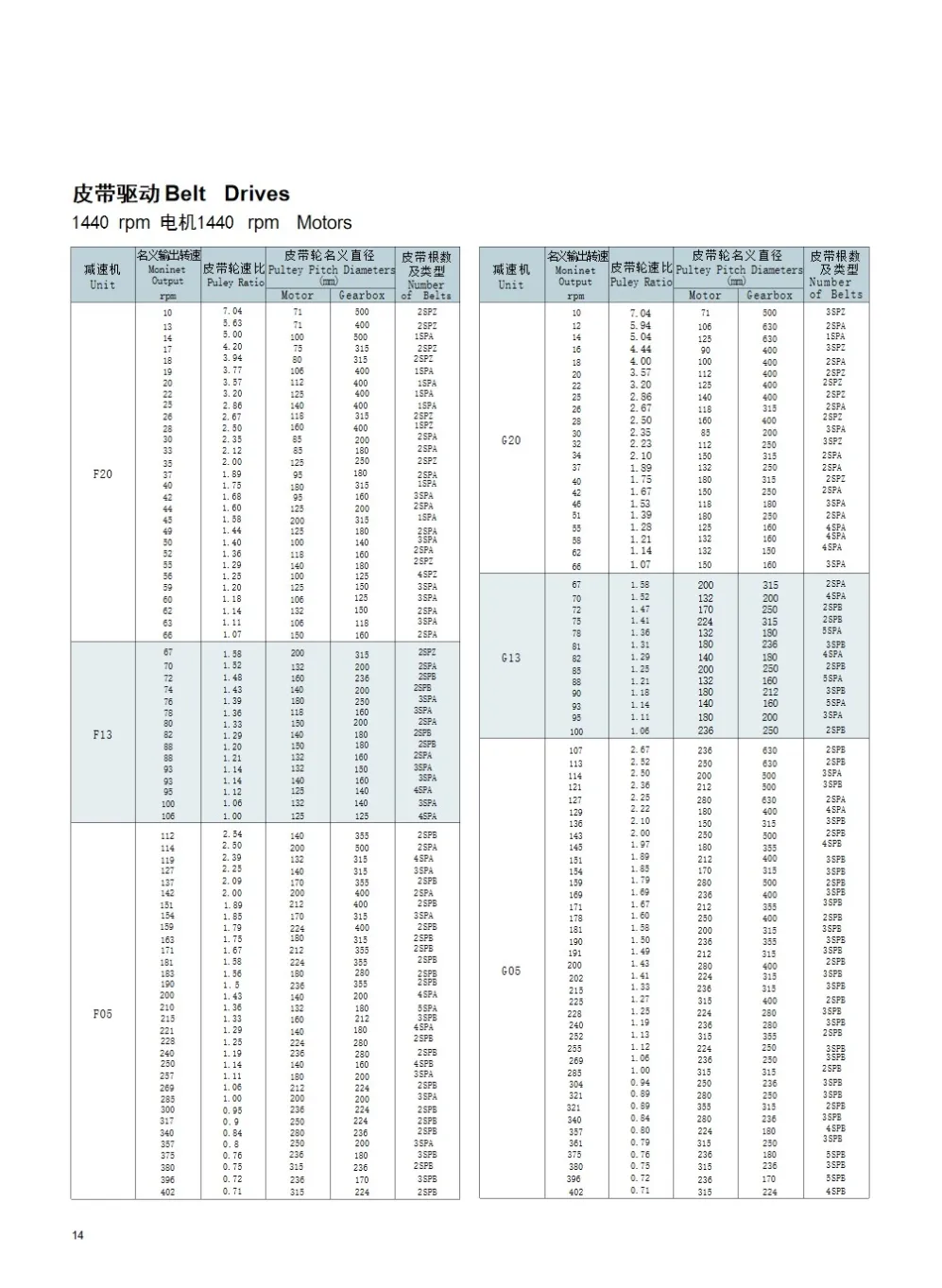

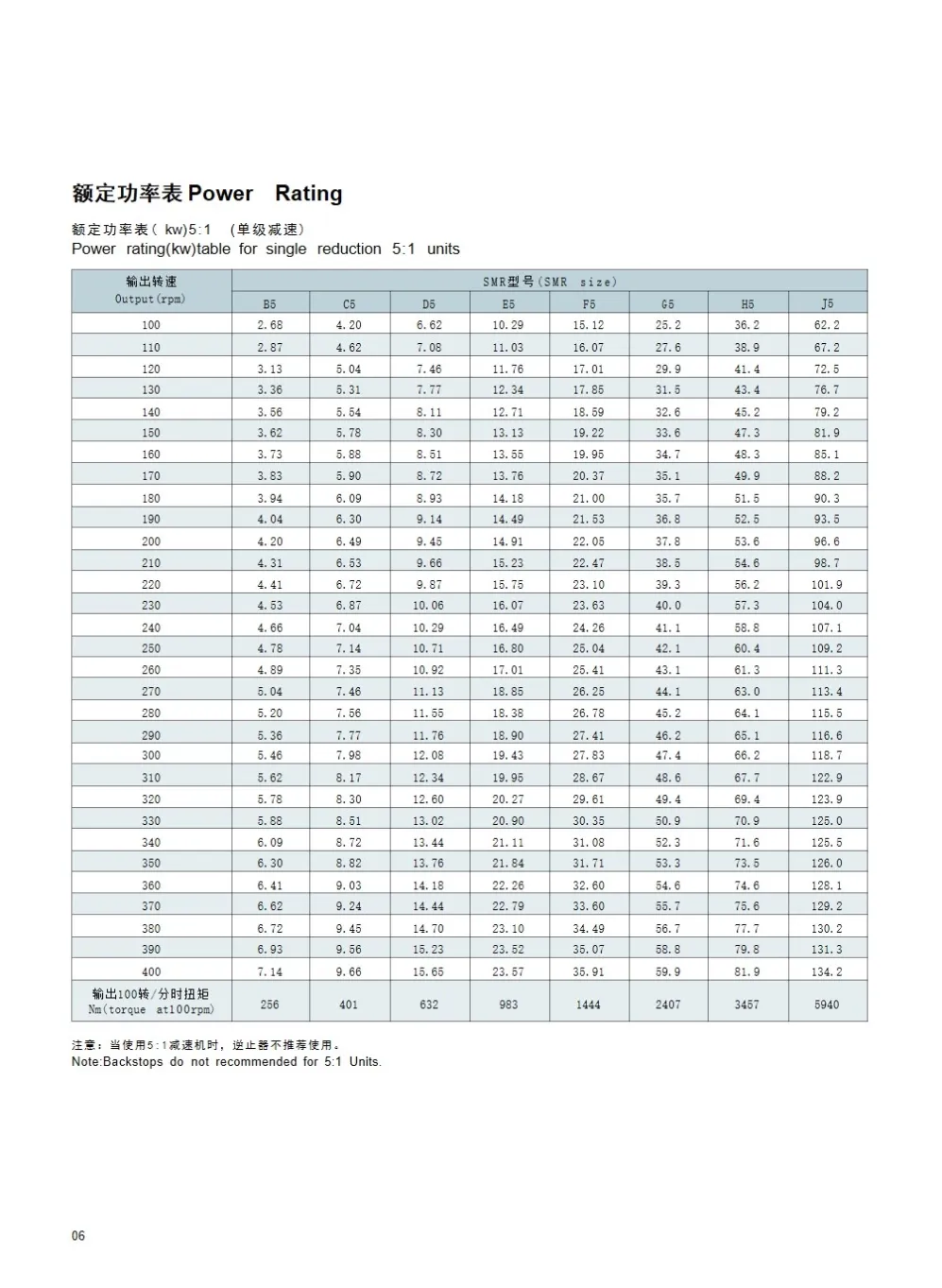

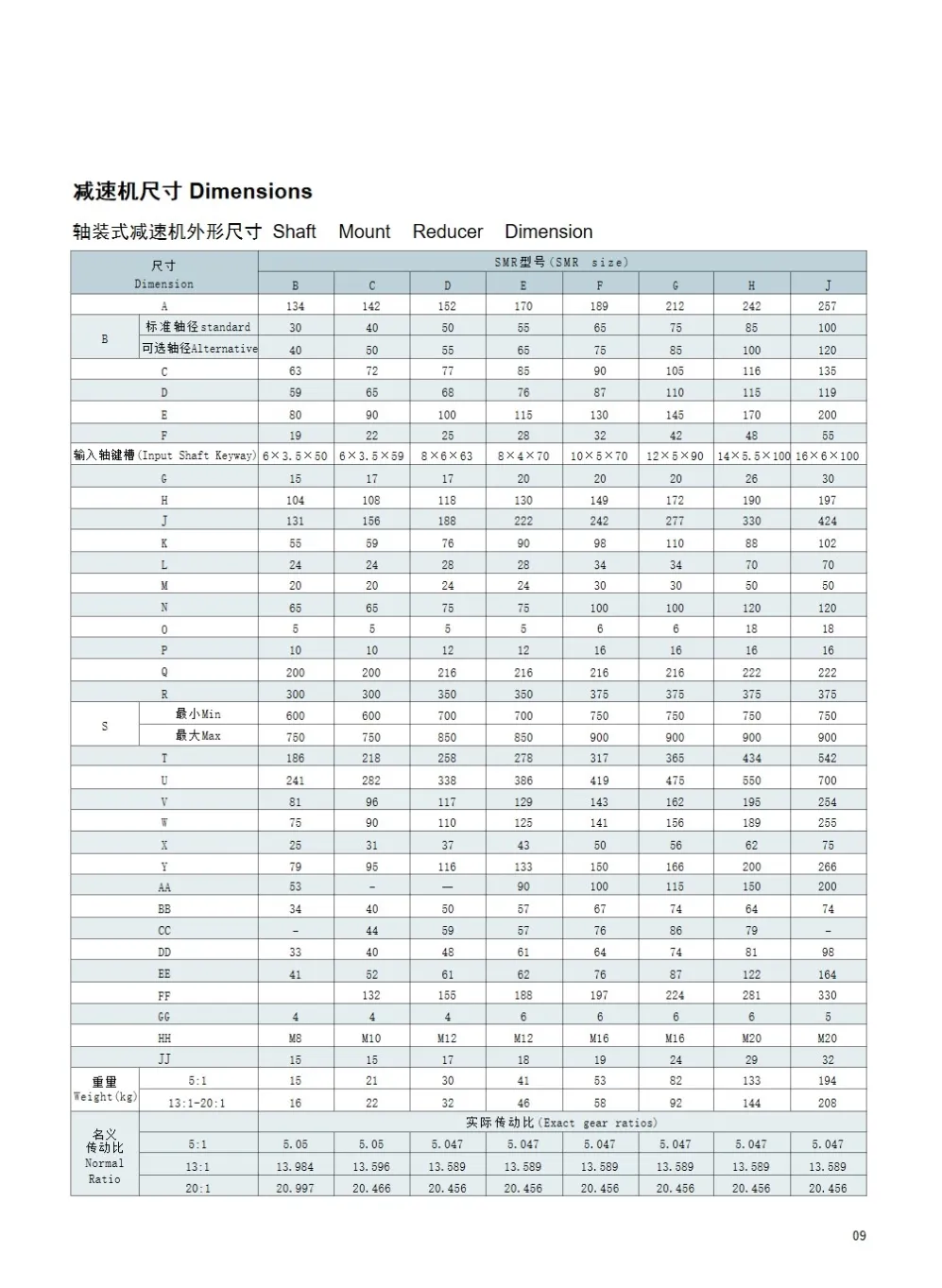

Sizes | 15 - from A to M |
|---|---|
Reduction ratios | 5:1 · 13:1 · 15:1 · 20:1 · 25:1 |
Shafts | Hollow, with keyways |
Bores | Metric & imperial |
Gears | Case-hardened, CNC-ground helical |
Interchangeability | With leading brands |
1 、O utput Hubs

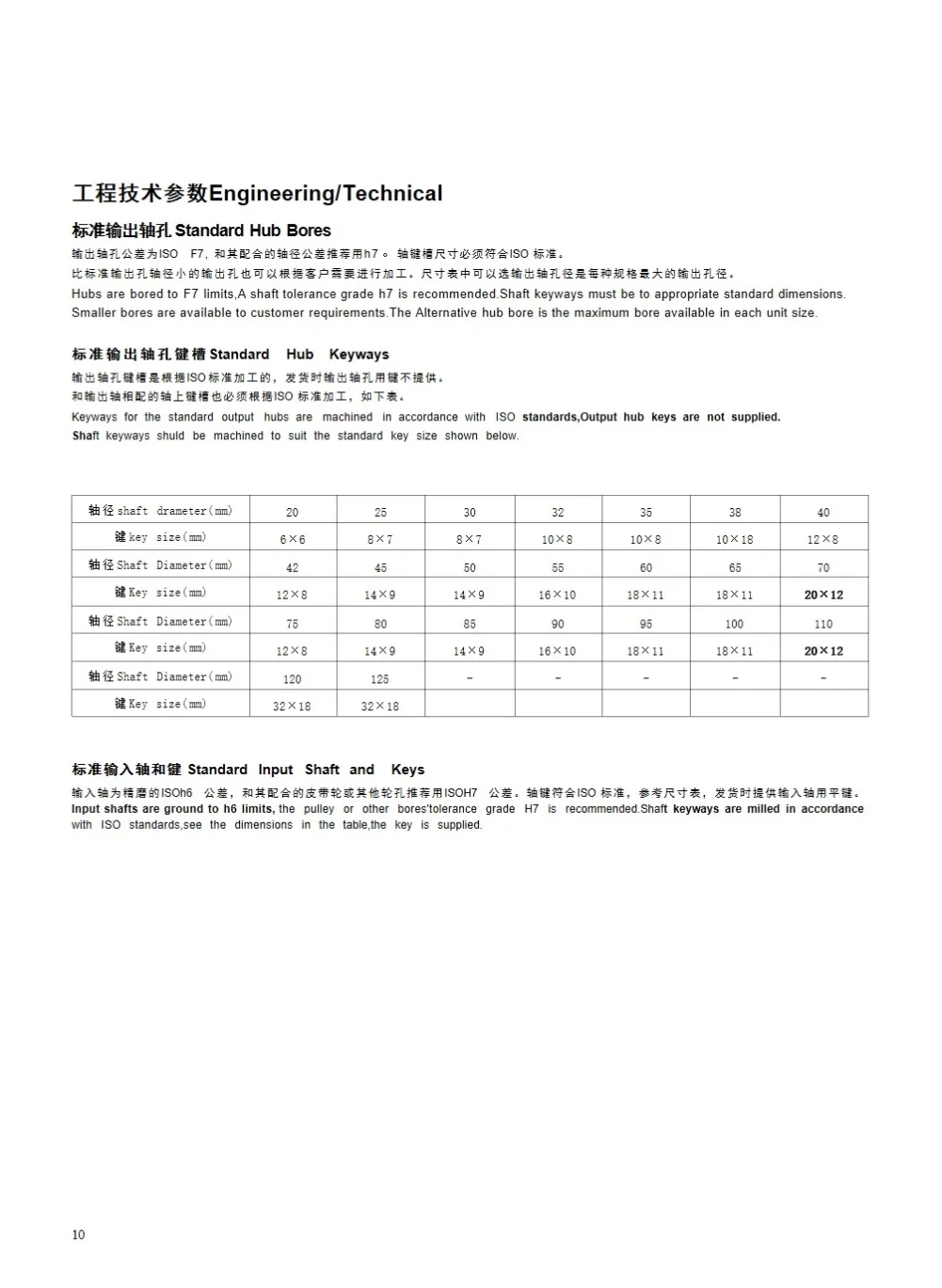

Standard or alternative hubs with metric bores are available to suit inter national shaft diameters.
2 、P recision High Quality Gearing

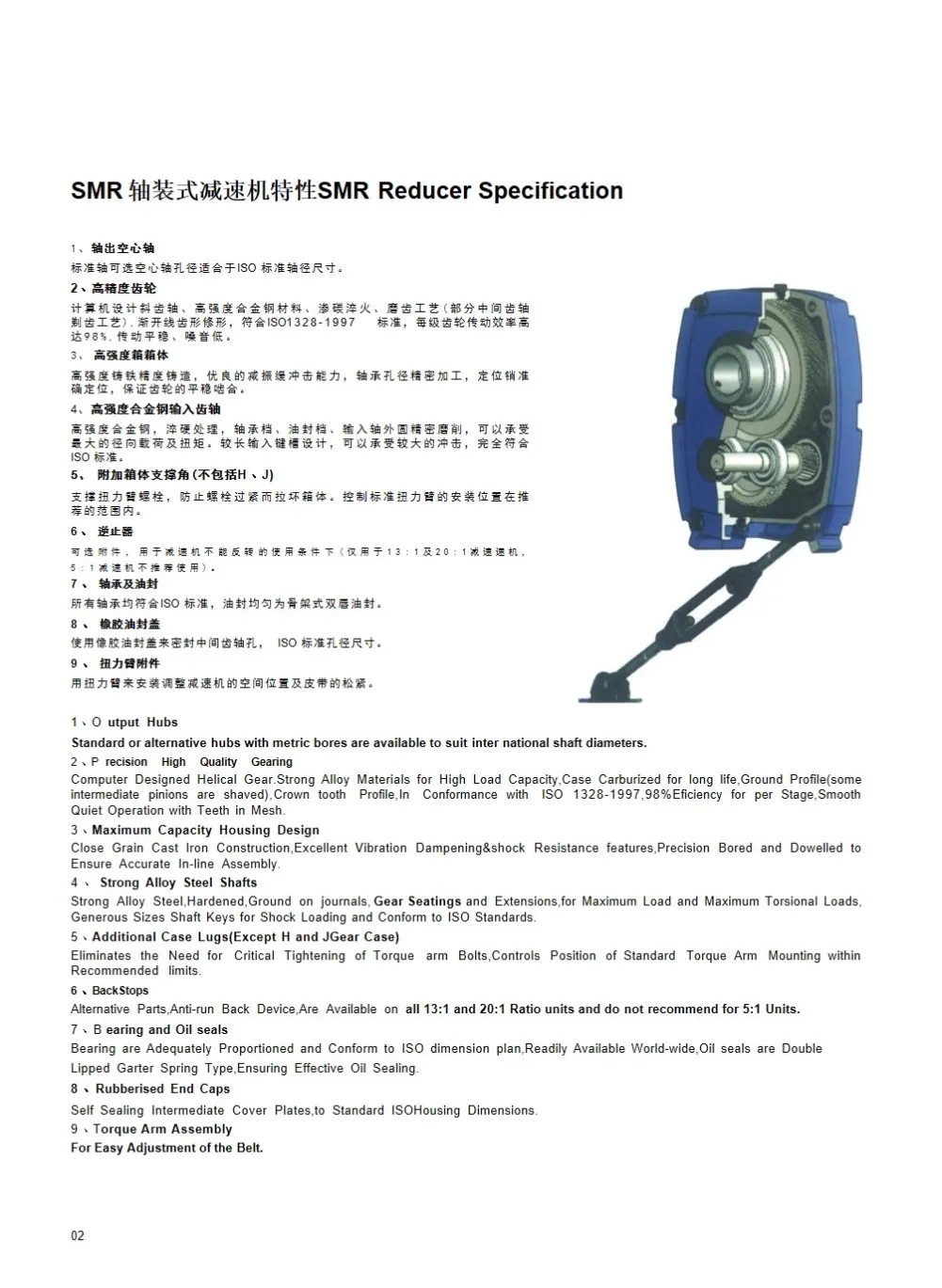

Computer Designed Helical Gear.Strong Alloy Materials for High Load Capacity,Case Carburized for long life,Ground Profile(some intermediate pinions are shaved),Crown tooth Profile,In Conformance with ISO 1328-1997,98%Eficiency for per Stage,Smooth Quiet Operation with Teeth in Mesh.
3 、Maximum Capacity Housing Design
Close Grain Cast Iron Construction,Excellent Vibration Dampening&shock Resistance features,Precision Bored and Dowelled to Ensure Accurate In-line Assembly.
4 、 Strong Alloy Steel Shafts
Strong Alloy Steel,Hardened,Ground on journals, Gear Seatings and Extensions,for Maximum Load and Maximum Torsional Loads, Generous Sizes Shaft Keys for Shock Loading and Conform to ISO Standards.
5 、Additional Case Lugs(Except H and JGear Case)
Eliminates the Need for Critical Tightening of Torque arm Bolts,Controls Position of Standard Torque Arm Mounting within
Recommended limits.
6 、BackStops
Alternative Parts,Anti-run Back Device,Are Available on all 13:1 and 20:1 Ratio units and do not recommend for 5:1 Units.

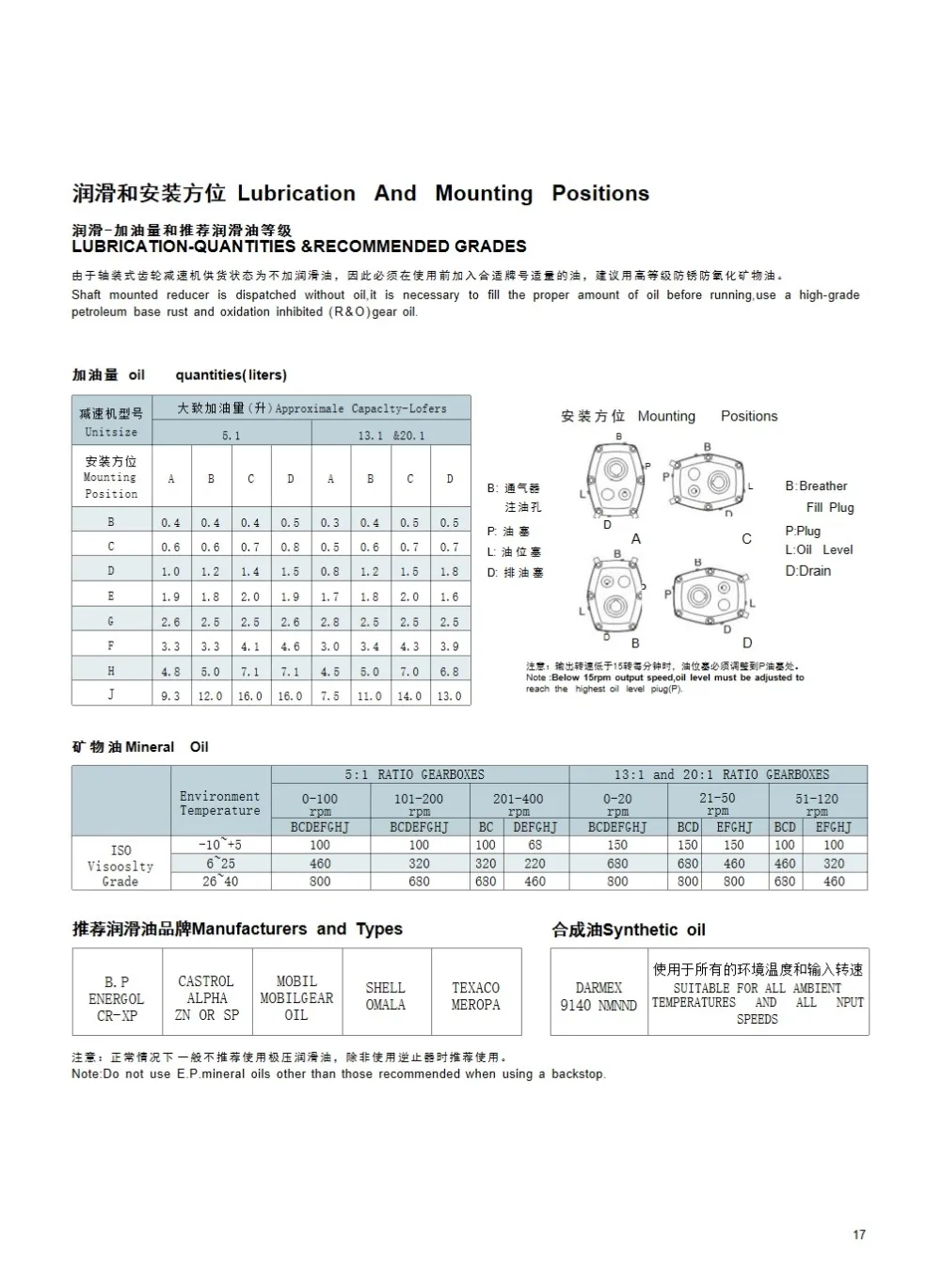

7 、B earing and Oil seals
Bearing are Adequately Proportioned and Conform to ISO dimension plan,Readily Available World-wide,Oil seals are Double Lipped Garter Spring Type,Ensuring Effective Oil Sealing.
8 、Rubberised End Caps
Self Sealing Intermediate Cover Plates,to Standard ISOHousing Dimensions.

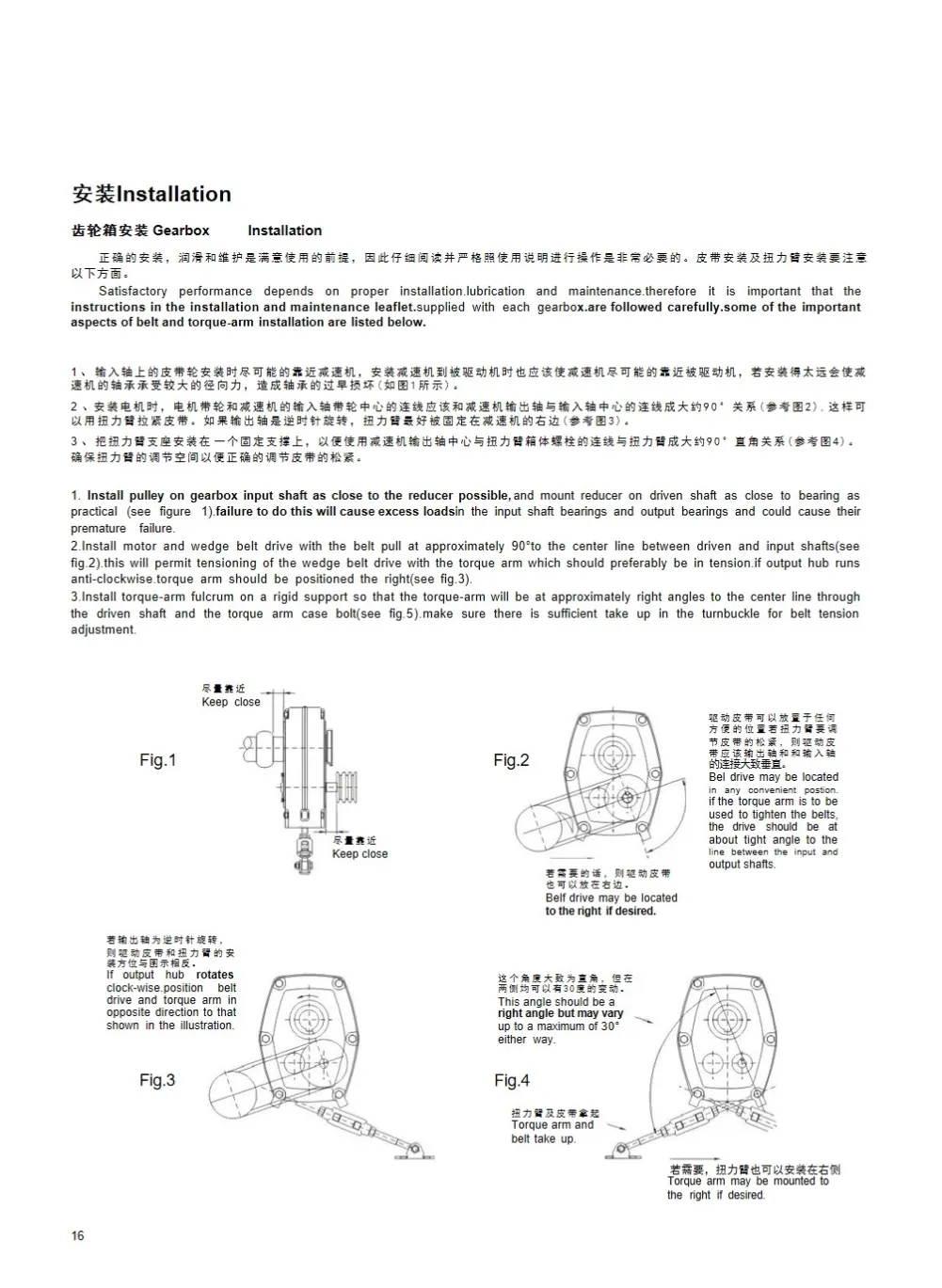

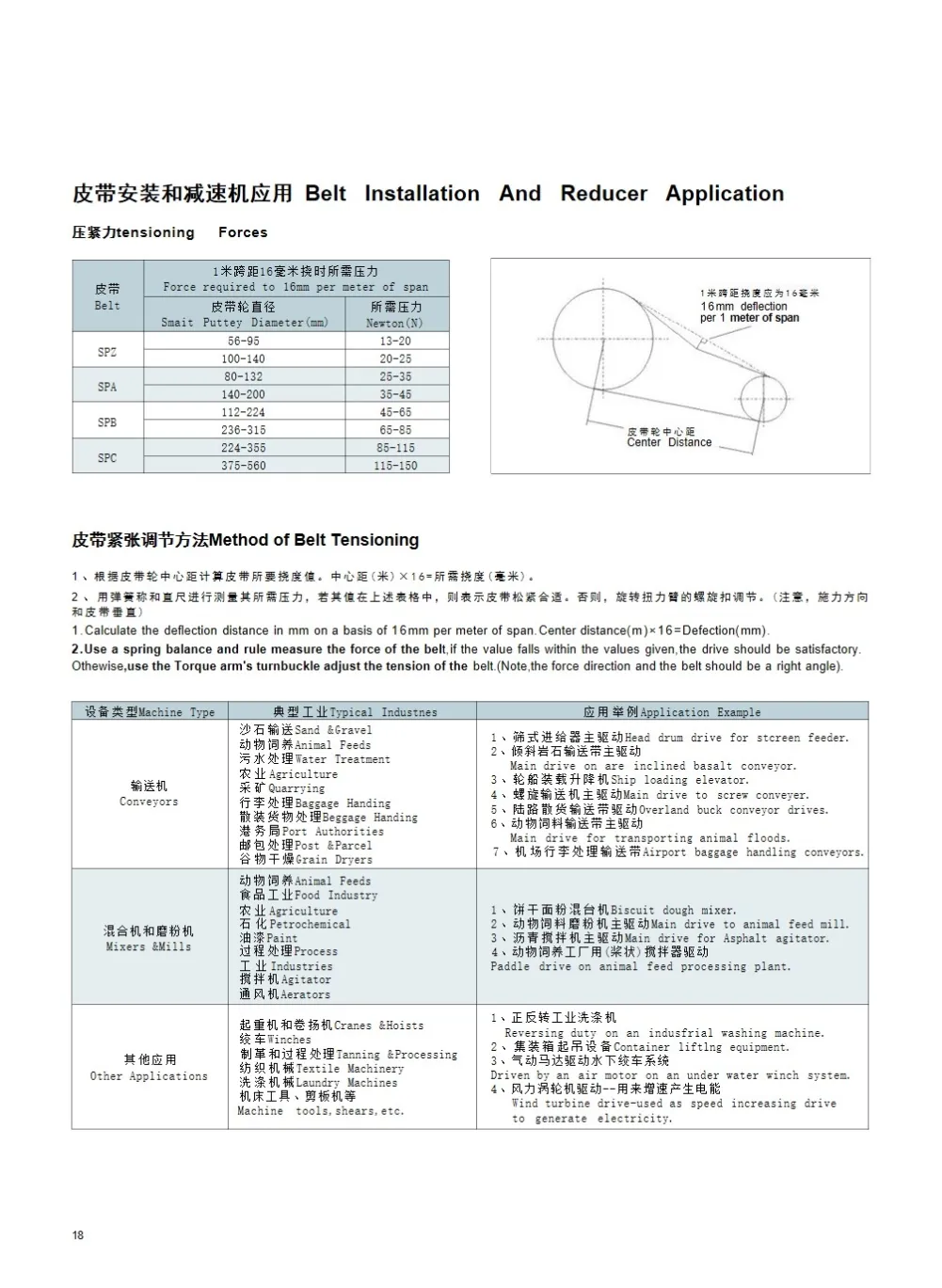

9 、Torque Arm Assembly For Easy Adjustment of the belt
