RV Worm Gear Reducer
RV Worm Gearbox NMRV025 for Agricultural Machinery
RV Worm Gearbox NMRV025 for Agricultural Machinery for industrial reducer gearbox applications. Built for reliable power transmission, project configuration, and XinChi OEM reducer support.

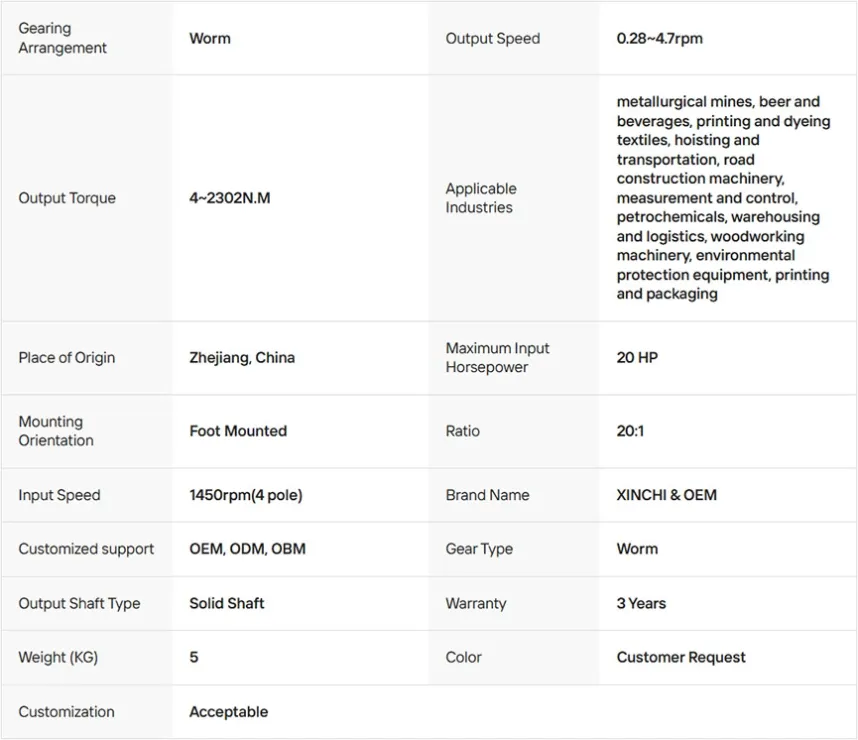

Specifications
- Place of Origin
- ZheJiang, China
- Brand
- XinChi
- Shipping Port
- Any port in China
- Free Maintenance
- One Year
- Lead Time
- About 3 Weeks
Get a Quote for RV Worm Gearbox NMRV025 for Agricultural Machinery
Tell us more about your reducer gearbox requirement. XinChi Precision Machinery Co., Ltd. provides industrial gearbox production, reducer selection support, and fast service for custom projects. Any questions, call +86-17357726208.
Company Overview
XinChi Precision Machinery Co., Ltd. integrates research and development, production, and manufacturing for reducer products. We provide mature gearbox solutions and support customers with project-ready gearbox configuration.
Product Parameters
Type | Worm Gear Speed Reducer/ Gearbox |
|---|---|
Ratio | 5,7.5,10,15,20,25,30,40,50,60,80,100 |
Color | Blue(Ral5010)/Silver Grey (RAL9006) Or On Customer Request |
Material | Housing: Size 25-110 Is Aluminum Alloy, Size 110-150 Is Cast-Iron |
Worm Wheel: ZCuSn10Pb1 | Worm:20Cr |
Pinion:Tin Bronze | Output Shaft: Steel-45# |
Usages | Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing,Wood working, Glass. |
IEC Flange | IEC Standard Flange Or On Customer Request |
Model No. NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV075, NMRV090, NMRV110, NMRV130, NMRV150
Key Attributes
RV Worm Gearbox NMRV025 for Agricultural Machinery key attributes 06
RV Worm Gearbox NMRV025 for Agricultural Machinery key attributes 07

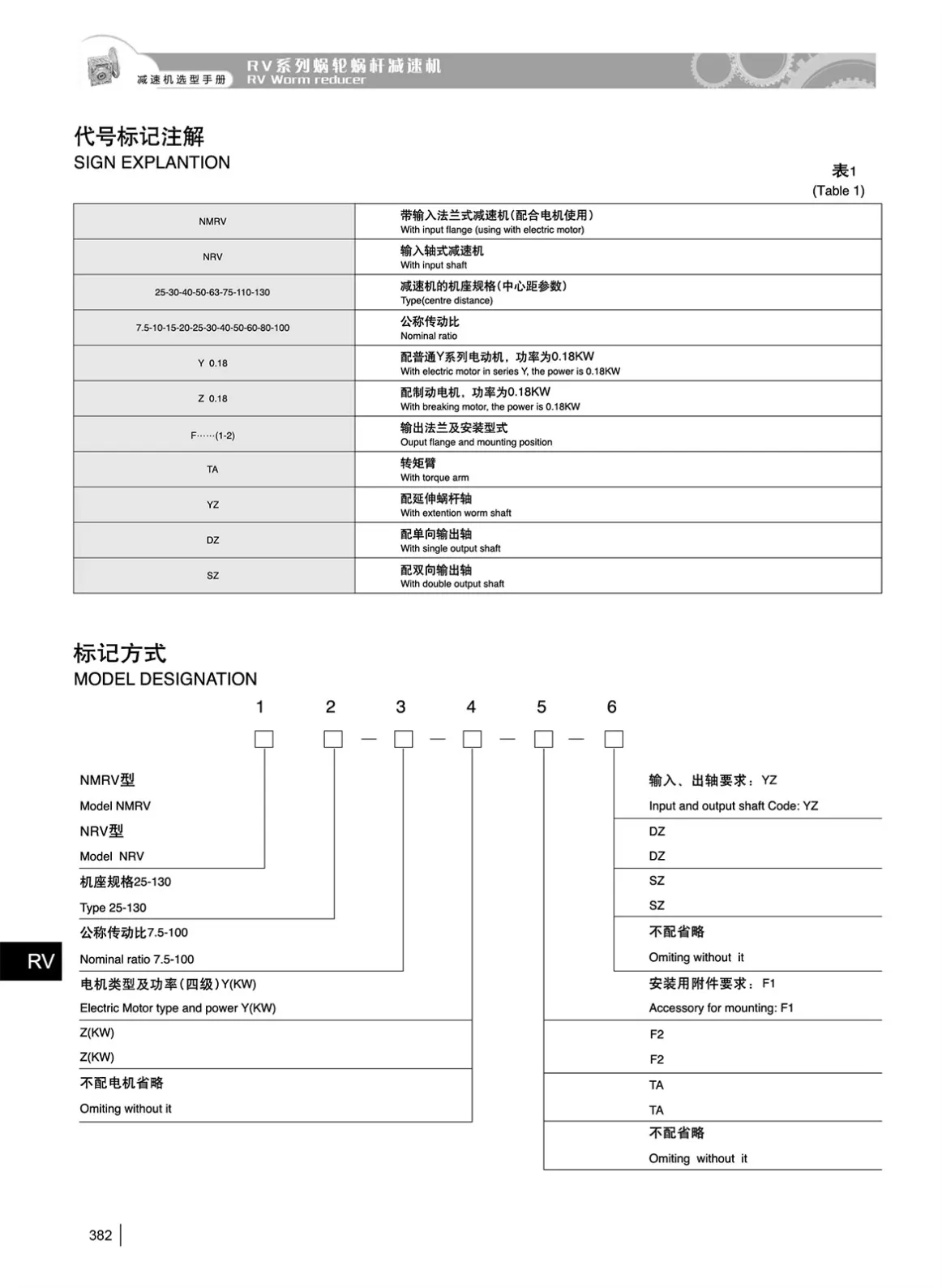

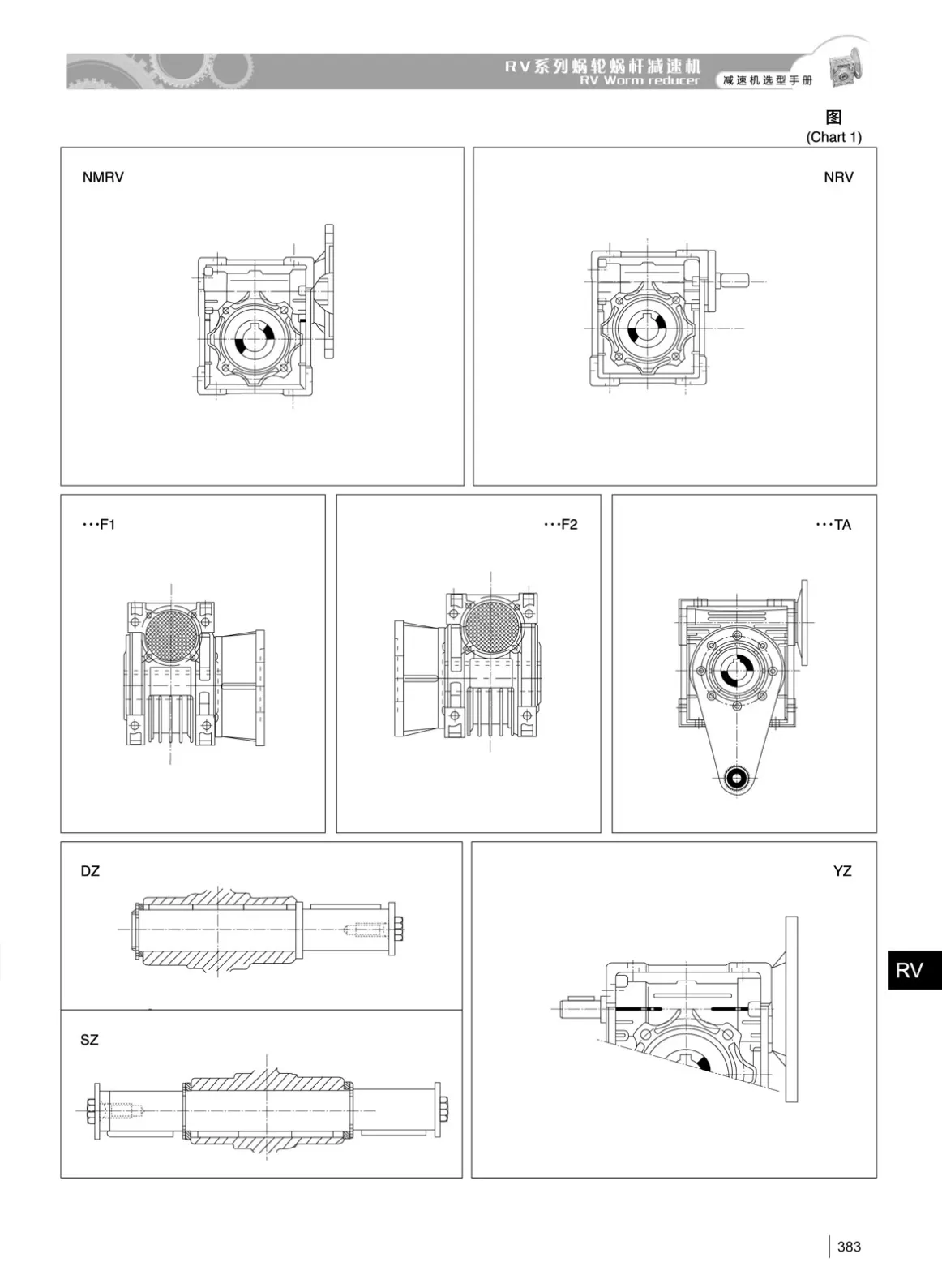

Type Designations
RV Worm Gearbox NMRV025 for Agricultural Machinery type designations 08
RV Worm Gearbox NMRV025 for Agricultural Machinery type designations 09
RV Worm Gearbox NMRV025 for Agricultural Machinery type designations 10
Our Advantage
RV Worm Gearbox NMRV025 for Agricultural Machinery our advantage 11
Fast Quotation
For a fast quotation, send application details, drawings, reduction ratio, torque, mounting requirements, quantity, and destination port.
