Palm Oil Mill Applications

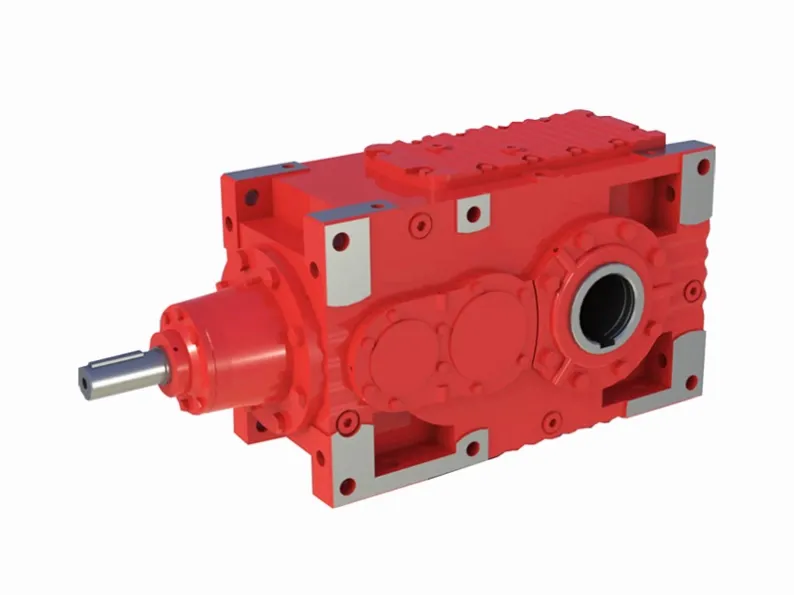

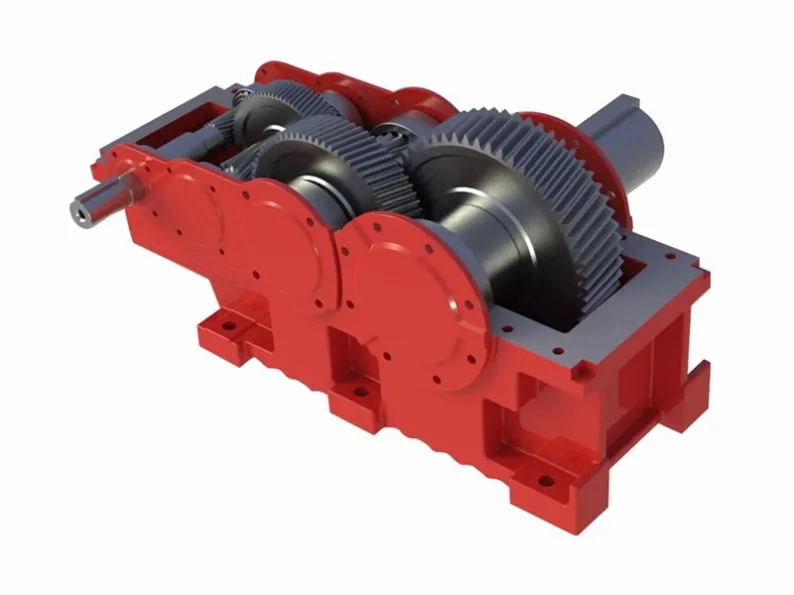

PC3 Series Helical Precision Adjustment Gear Motor Reducer
PC3 Series Helical Precision Adjustment Gear Motor Reducer for industrial reducer gearbox applications. Built for reliable power transmission, project configuration, and XinChi OEM reducer support.
Specifications
- Place of Origin
- ZheJiang, China
- Brand
- XinChi
- Shipping Port
- Any port in China
- Free Maintenance
- One Year
- Lead Time
- About 3 Weeks
Get a Quote for PC3 Series Helical Precision Adjustment Gear Motor Reducer
Tell us more about your reducer gearbox requirement. XinChi Precision Machinery Co., Ltd. provides industrial gearbox production, reducer selection support, and fast service for custom projects. Any questions, call +86-17357726208.
Company Overview
XinChi Precision Machinery Co., Ltd. integrates research and development, production, and manufacturing for reducer products. We provide mature gearbox solutions and support customers with project-ready gearbox configuration.
Product Parameters
Housing Material | Cast iron/Ductile iron |
|---|---|
Housing hardness | HBS190-240 |
Gear Material | 20CrMnTi alloy steel |
Surface hardness of gears | HRC58°~62 ° |
Gear core hardness | HRC33~40 |
Input / Output shaft Material | 42CrMo alloy steel |
Input / Output shaft hardness | HRC25~30 |

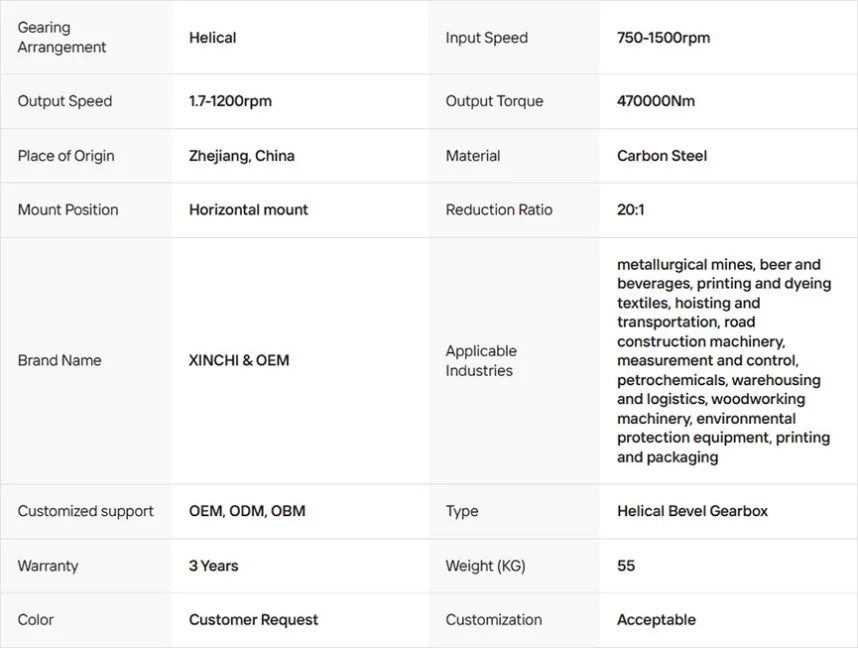

Key Attributes
PC3 Series Helical Precision Adjustment Gear Motor Reducer key attributes 06
PC3 Series Helical Precision Adjustment Gear Motor Reducer key attributes 07

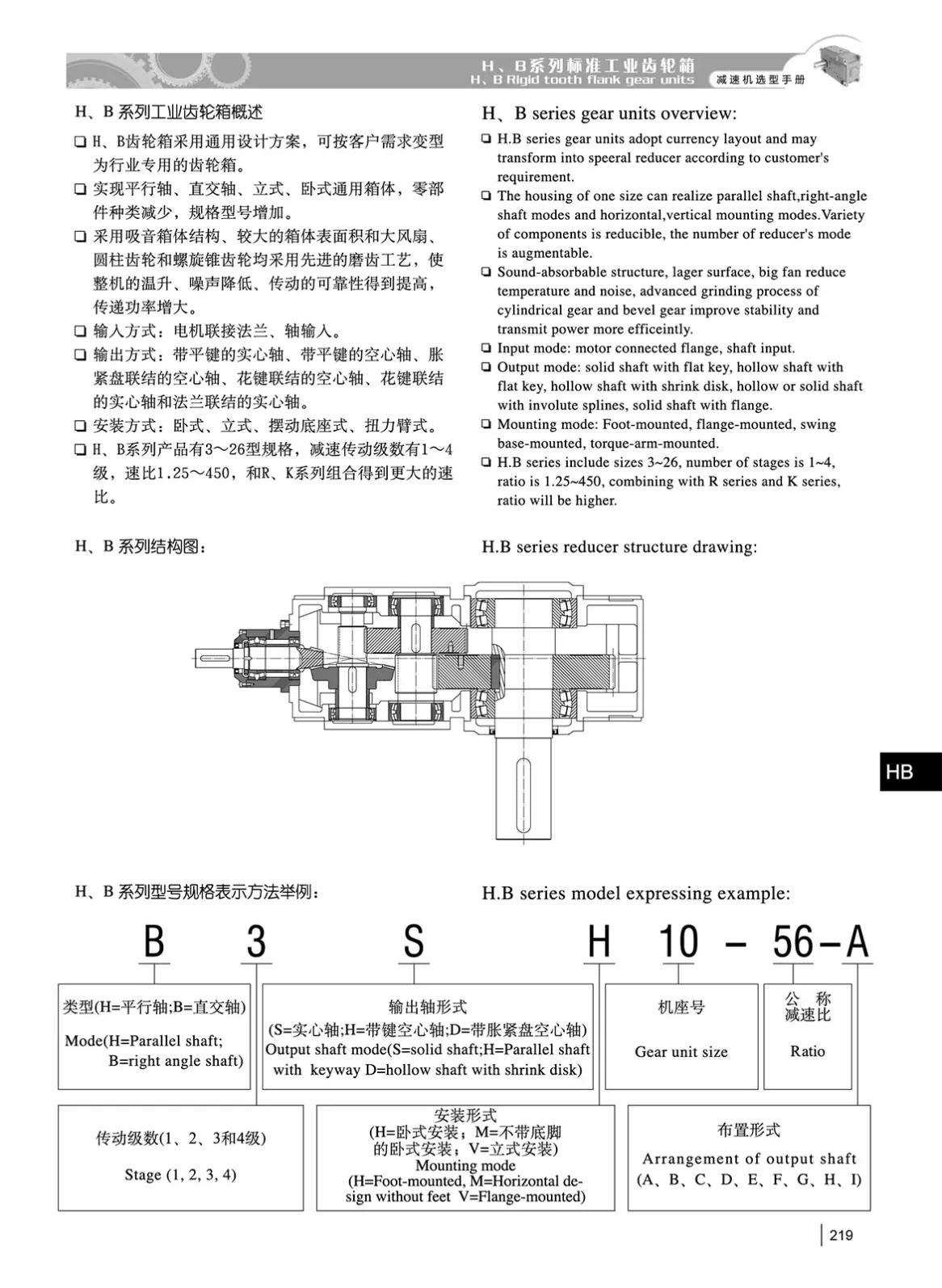

Type Designations
PC3 Series Helical Precision Adjustment Gear Motor Reducer type designations 08
PC3 Series Helical Precision Adjustment Gear Motor Reducer type designations 09
PC3 Series Helical Precision Adjustment Gear Motor Reducer type designations 10
Our Advantage
PC3 Series Helical Precision Adjustment Gear Motor Reducer our advantage 11
Fast Quotation
For a fast quotation, send application details, drawings, reduction ratio, torque, mounting requirements, quantity, and destination port.
