Custom Mining Gearbox for Crushers, Conveyors and Hoists
Custom mining gearboxes for crushers, conveyors, hoists and winches. Built for high impact, heavy loads, dust and long service intervals.
Custom Mining Gearboxes Built for Severe Operating Conditions
Mining equipment operates in some of the harshest industrial environments. Ore crushing creates repeated impact loads, long-distance conveyors carry high material tonnage for extended hours, and hoists must control heavy loads with predictable movement. Dust, vibration, temperature changes, and limited maintenance access can quickly expose a weak transmission system.
A custom mining gearbox is configured around the actual machine and duty cycle rather than selected as a general-purpose component. Matching the gearbox to required torque, output speed, ratio, mounting arrangement, operating hours, and environmental conditions helps improve transmission stability and reduce avoidable downtime.
Why Mining Equipment Needs a Specialized Gearbox
Mining machinery is exposed to rapid load changes and abrasive dust. The gearbox must transmit power reliably when material feed is uneven, the machine starts under load, or the operation runs long shifts. A purpose-configured gearbox considers peak and running torque, reduction ratio, duty cycle, shaft arrangement, sealing, lubrication, heat dissipation, and maintenance access.
Mining Gearbox for Crushing Equipment

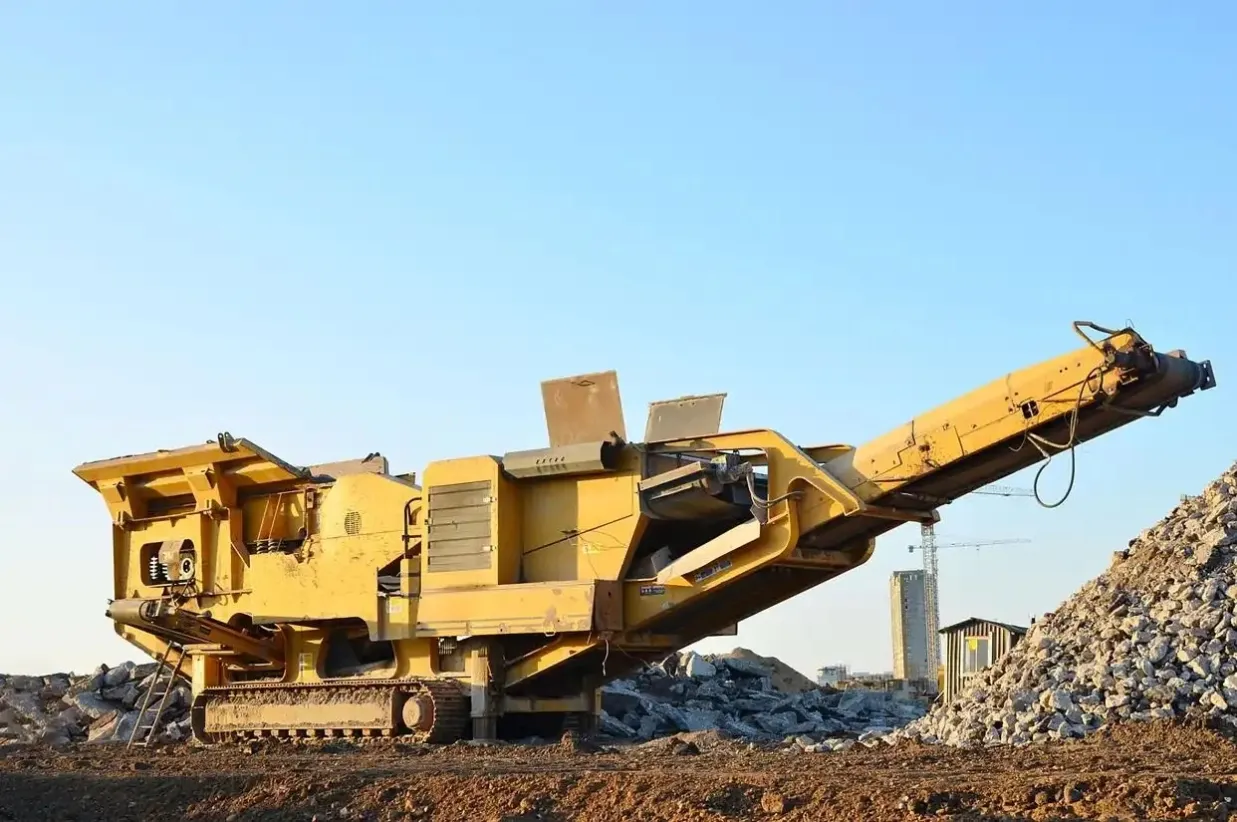

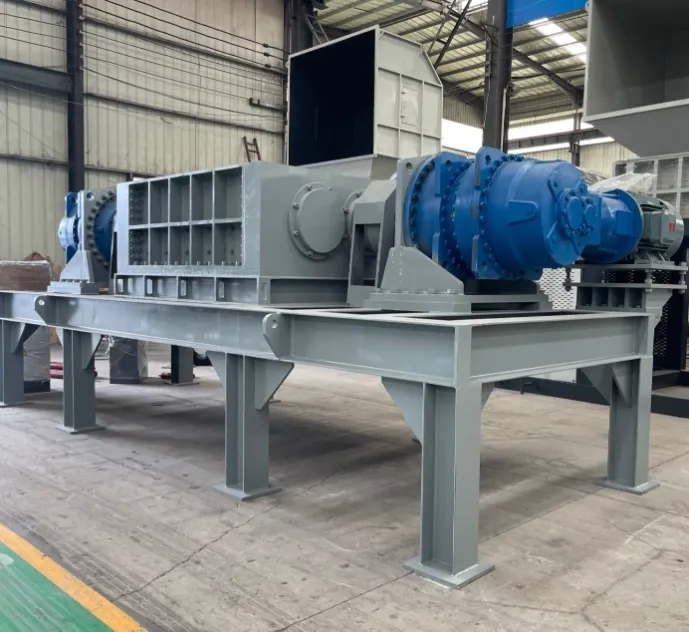

Jaw crushers, cone crushers, impact crushers, and twin-shaft machines produce strong and sometimes unpredictable resistance at the drive. A crusher gearbox must deliver high output torque while tolerating repeated shock loads and vibration. High-strength alloy components and precision-manufactured gearing support stable power transmission under severe duty, while a robust housing and sealing arrangement help protect internal parts around loose rock and airborne dust.
For a crushing gearbox review, provide the crusher type, motor power and speed, required output torque and shaft speed, expected impact level, installation space, ambient conditions, and lubrication requirements.
Conveyor Gearbox for Long-Distance Ore Transport

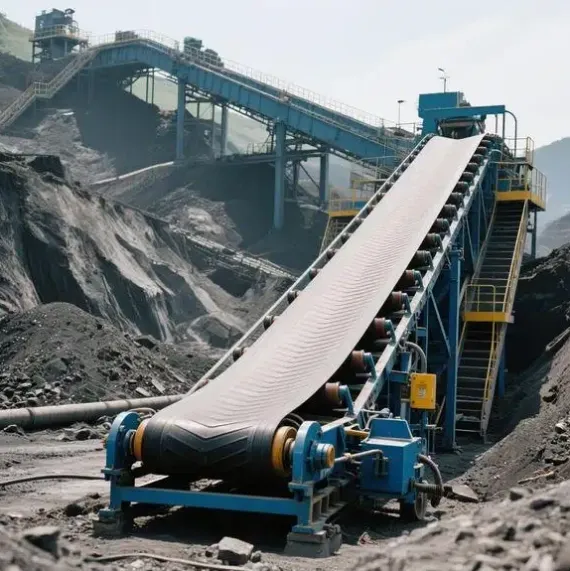

Belt conveyors move ore, coal, and overburden through processing plants and open-pit mine sites. Long-distance, high-tonnage conveyors demand controlled start-up behavior, continuous power delivery, and thermal stability. A mining conveyor gearbox should provide the required reduction ratio and output speed while supporting smooth material flow and helping to limit unnecessary belt stress.
Key inputs include belt capacity, material density, conveyor length, incline, pulley diameter, loaded start requirements, ambient conditions, mounting arrangement, and maintenance access.
Mining Hoist and Winch Gearbox

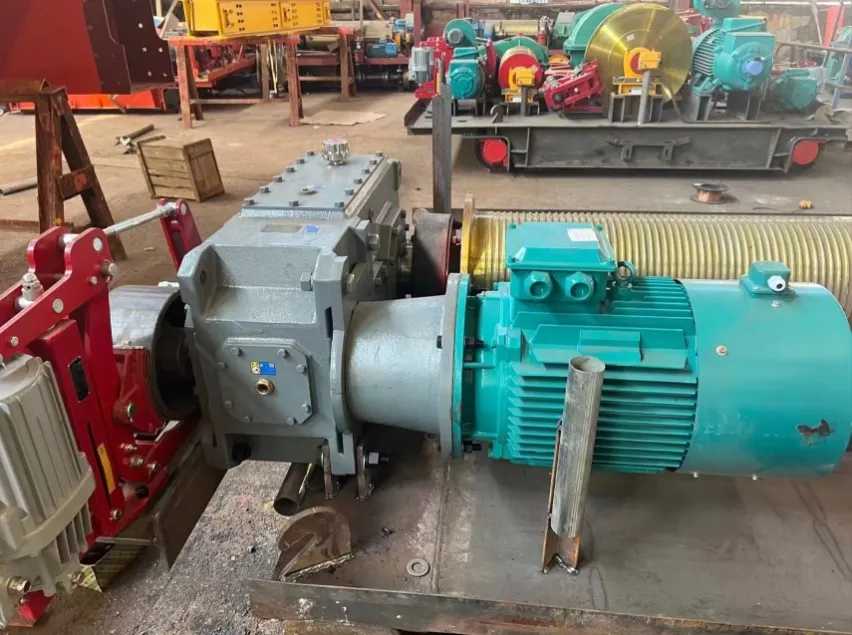

Mining hoists and winches require controlled lifting, reliable holding, and repeatable movement. The gearbox must work with the motor, drum, brake, and control system as one drive package. A mining hoist gearbox can be configured around lifting load, rope drum, line speed, duty cycle, and braking arrangement. Smooth torque delivery supports controlled movement when loads accelerate, decelerate, or stop at a defined position.
Materials, Sealing, and Precision Manufacturing
High-strength alloy materials, suitable heat treatment, and controlled gear processing support load-carrying capacity and durability. Precision gear processing helps maintain tooth contact and stable transmission. Effective sealing is equally important: it helps limit dust and moisture ingress that can shorten gear, bearing, and lubricant life.
How to Specify a Custom Mining Gearbox
To receive a useful technical proposal, share the equipment type, motor power and speed, required output speed and torque, peak load, duty cycle, shaft and mounting dimensions, site conditions, and lubrication or maintenance requirements. The more complete the input data, the easier it is to confirm the gearbox selection, interfaces, and service requirements before manufacturing.
Frequently Asked Questions
What is a custom mining gearbox?
A custom mining gearbox is a transmission configured for a specific mining machine and duty cycle. It can be matched to torque, output speed, reduction ratio, mounting, shaft arrangement, sealing, lubrication, and environmental conditions.
Can one gearbox design be used for crushers and conveyors?
A gearbox platform may be adapted for different equipment, but the final specification should not be assumed to be interchangeable. Crushers and conveyors have different load patterns, speeds, impact levels, and mounting requirements.
What information is needed to select a mining equipment gearbox?
The main inputs are machine type, motor power and speed, required output speed and torque, peak load, duty cycle, shaft and mounting dimensions, site environment, and maintenance requirements.
Choose a gearbox around the mine, not just the motor. A duty-specific review is the first step toward a reliable mining transmission solution.
